Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
The LMX2433 requires a specific bias voltage and current to operate optimally. Ensure that the VCC pin is connected to a stable 3.3V power supply, and the VTT pin is connected to a voltage source that is 1.5V to 2.5V above the VCC voltage. Also, ensure that the bias current is set to the recommended value of 10mA to 20mA.
The LMX2433 is designed to handle a maximum input power of +15dBm. Exceeding this power limit can cause damage to the device or affect its performance. It's recommended to use an attenuator or a limiter to ensure that the input power does not exceed this limit.
To troubleshoot issues with the LMX2433, start by verifying that the device is properly biased and that the input power is within the recommended range. Check the PCB layout for any issues, such as poor grounding or signal integrity problems. Use a spectrum analyzer to measure the output frequency and verify that it meets the required specifications. If the issue persists, consult the Texas Instruments support resources or contact their technical support team for further assistance.
While the LMX2433 is designed for 50-ohm systems, it can be used in non-50-ohm systems with some modifications. However, this may require additional impedance matching components to ensure optimal performance. Consult the Texas Instruments application notes and design guides for more information on using the LMX2433 in non-50-ohm systems.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMX2433TM/NOPB Overview

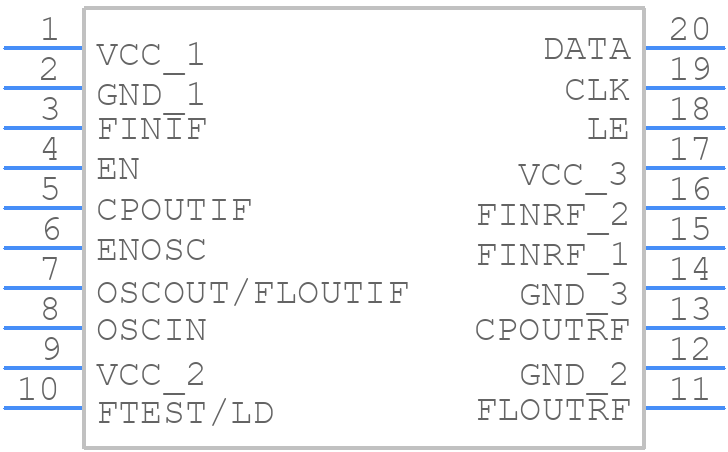

Use the download button to access the LMX2433TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
