LMX2433TMX/NOPB - Texas Instruments

Description: Phase Locked Loops - PLL R 926-LMX2433SLEX/NOPB

Download LMX2433TMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

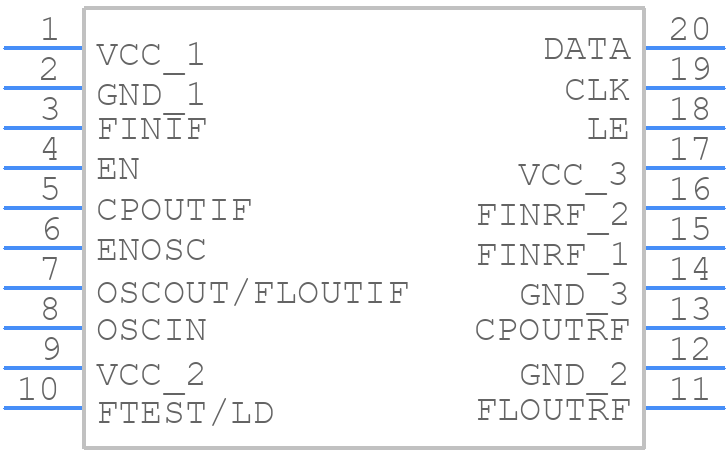

LMX2433TMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2433TMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
LMX2433TMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

LMX2433TMX/NOPB Details

  • Manufacturer Part Number:

    LMX2433TMX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    GREEN, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4.4 mA

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LMX2433TMX/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 10uF capacitor for the AVCC pin.
  • The PLL lock detect signal (LOCK) can be used to monitor the PLL lock status. The LOCK signal is high when the PLL is locked and low when it's not. You can also use the PLL lock detect pin to reset the PLL if it loses lock.
  • The maximum clock frequency that can be used with the LMX2433 is 2.4 GHz. However, the actual maximum frequency may vary depending on the specific application and PCB layout.
  • The LMX2433 can be configured for a specific frequency band by programming the PLL loop filter components and the VCO tuning voltage. The datasheet provides a table with recommended values for different frequency bands.
  • The power consumption of the LMX2433 depends on the operating frequency and the supply voltage. Typically, the power consumption is around 30-40 mA at 2.4 GHz with a 3.3V supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2433TMX/NOPB Overview

Use the download button to access the LMX2433TMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24, or try a keyword search, such as PLL or Frequency Synthesis Circuits
