Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LMX2485QSQX/NOPB - Texas Instruments

Description: Clock Generator 500MHz to 3.1GHz-IN 3100MHz-OUT Automotive 24-Pin WQFN EP T/R

Download LMX2485QSQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

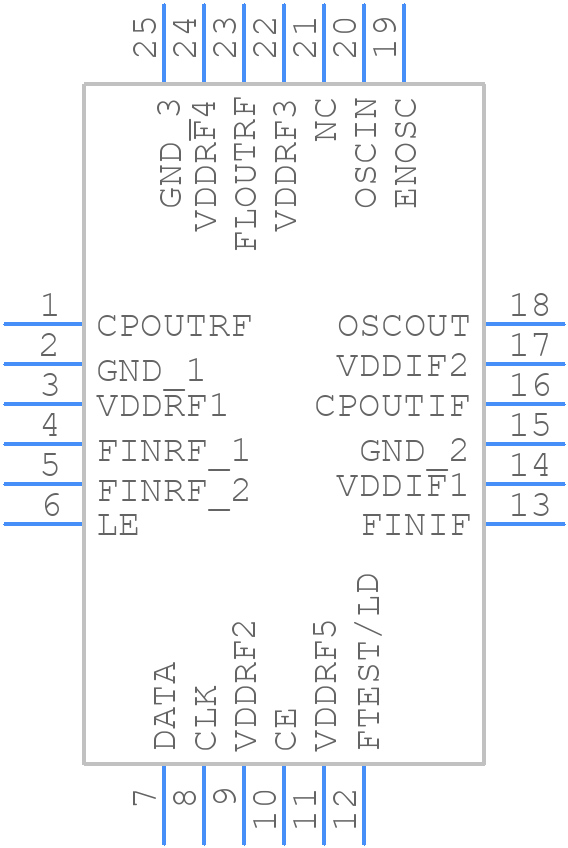

LMX2485QSQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2485QSQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A WQFN
click to zoom
3D Models
LMX2485QSQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A WQFN
click to zoom

LMX2485QSQX/NOPB Details

  • Manufacturer Part Number:

    LMX2485QSQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    3100 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMX2485QSQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
  • Proper biasing is critical for the LMX2485QSQX/NOPB. Ensure that the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Also, make sure to follow the recommended biasing circuitry shown in the datasheet.
  • The LMX2485QSQX/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To troubleshoot issues with the LMX2485QSQX/NOPB, start by verifying the PCB layout and biasing circuitry. Check for any signs of damage or overheating. Use a spectrum analyzer to measure the output frequency and phase noise. Consult the datasheet and application notes for troubleshooting guidelines and contact Texas Instruments support if necessary.
  • While the LMX2485QSQX/NOPB is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance. Consult the datasheet and application notes for guidance on impedance matching and contact Texas Instruments support if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2485QSQX/NOPB Overview

Use the download button to access the LMX2485QSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LMX2485QSQX/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LMX2485QSQX/NOPB Alternates

Showing results

Image Part Number Model
Part Image LMX2485SQ/NOPB Texas Instruments

PLL Frequency Synthesizer, CMOS, PQCC24
Part Image LMX2485SQX National Semiconductor Corporation

PLL Frequency Synthesizer, CMOS, PQCC24
Part Image LMX2485SQX Texas Instruments

PLL Frequency Synthesizer, PQCC24
Part Image LMX2485SQ Texas Instruments

PLL Frequency Synthesizer, PQCC24
