Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
Proper biasing is critical for the LMX2485SQX/NOPB. Ensure that the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Also, make sure to follow the recommended biasing circuitry and component values provided in the datasheet.
The LMX2485SQX/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
To troubleshoot issues with the LMX2485SQX/NOPB, start by verifying the PCB layout and component values against the recommended design. Check for any signs of damage or overheating on the device. Use a spectrum analyzer to measure the output frequency and phase noise, and compare the results to the datasheet specifications. If issues persist, consult the Texas Instruments support resources or contact a technical support engineer.
Yes, the LMX2485SQX/NOPB can be used in a non-50-ohm system, but impedance matching is required to ensure optimal performance. Use a Smith chart or impedance matching software to design a matching network that transforms the load impedance to 50 ohms. Consult the datasheet and application notes for more information on impedance matching.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2485SQX/NOPB Overview

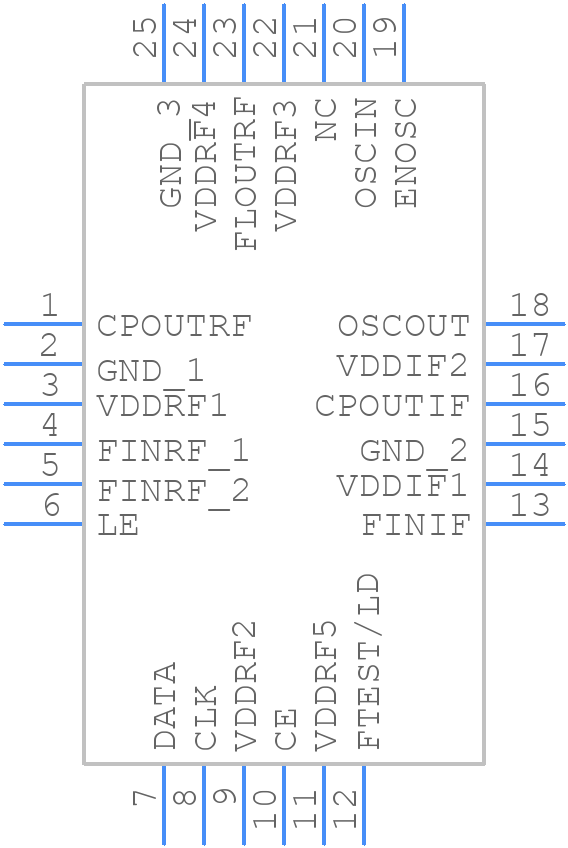

Use the download button to access the LMX2485SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
