LMX2487ESQ/NOPB - Texas Instruments

Description: Phase Locked Loops - PLL 3-GHz to 7.5-GHz delta-sigma low power dual PLL for RF personal communications 24-WQFN -40 to 85

Download LMX2487ESQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

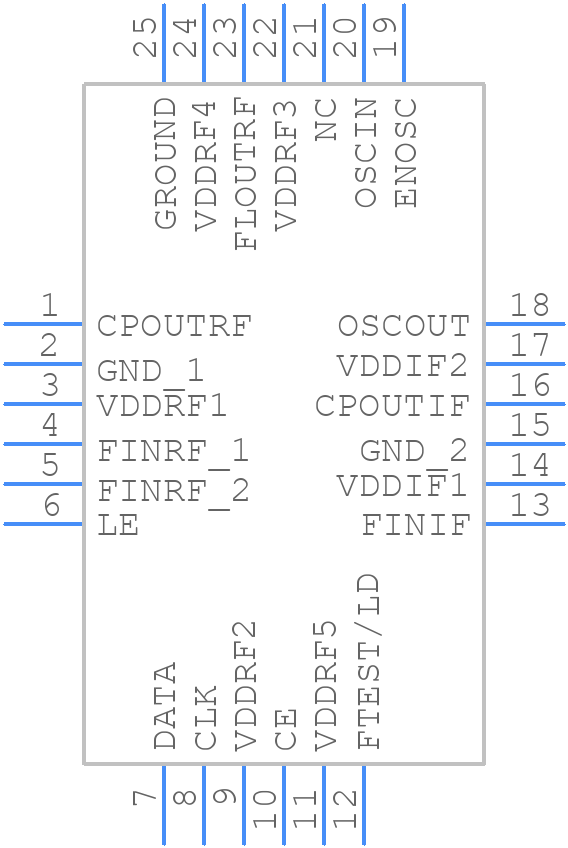

Symbol
LMX2487ESQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2487ESQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A_2023
click to zoom
3D Models
LMX2487ESQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A_2023
click to zoom

LMX2487ESQ/NOPB Details

  • Manufacturer Part Number:

    LMX2487ESQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    QUADRUPLE MODULUS PRESCALER (RF):16/17/20/21 OR 32/33/36/37

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    7500 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMX2487ESQ/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 10uF capacitor for the AVCC pin.
  • Ensure that the VCC pin is powered up before the AVCC pin. The VCC pin should be powered up first, followed by the AVCC pin. The device is fully operational after the power-up sequence is complete and the internal clock is stable.
  • A high-quality, low-jitter clock source is recommended. The device can use an external clock source or an internal oscillator. For optimal performance, use a clock source with a jitter of less than 100 ps.
  • Use the power-down mode to reduce power consumption when the device is not in use. Disable the internal oscillator and use an external clock source when possible. Optimize the clock frequency and voltage regulator settings for the specific application.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device and avoid blocking airflow. Use a thermal interface material with a thermal conductivity of at least 1 W/m-K.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2487ESQ/NOPB Overview

Use the download button to access the LMX2487ESQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
