A good PCB layout for the LMX2487SQ/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves setting the internal registers to the recommended values. Additionally, consider using the TI-provided software tools, such as the LMX2487 Evaluation Module, to simplify the calibration process.
The LMX2487SQ/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation of 1.5W.
To troubleshoot issues with the LMX2487SQ/NOPB, start by verifying the power supply voltage, checking for proper PCB layout and decoupling, and ensuring correct configuration of the internal registers. Use oscilloscopes and spectrum analyzers to measure the output signals and identify any anomalies.
To ensure EMI/EMC compliance, follow proper PCB layout and shielding guidelines, use a metal shield around the device, and ensure proper filtering and decoupling of the power supply. Additionally, consider using a TI-recommended EMI filter and following the guidelines outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2487SQ/NOPB Overview

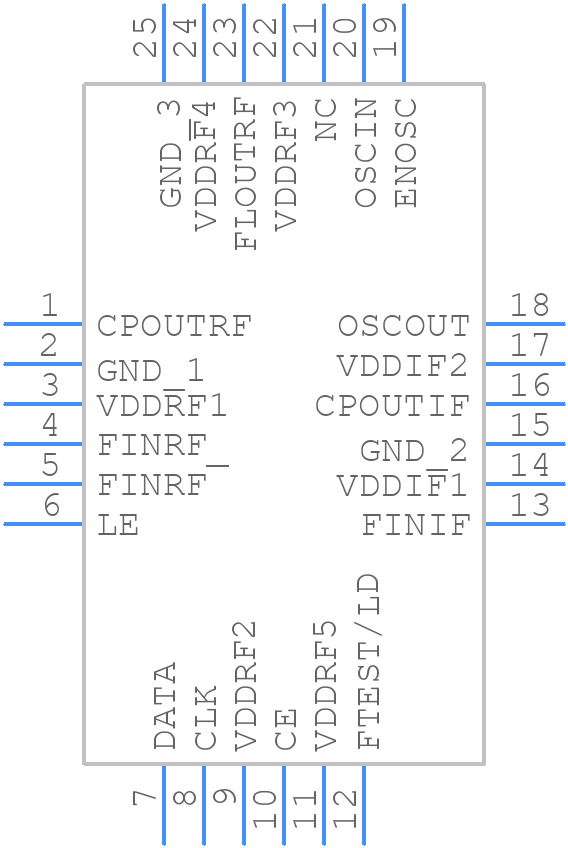

Use the download button to access the LMX2487SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
