A good PCB layout for the LMX2491RTWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
To optimize the PLL loop filter design, you should consider the desired loop bandwidth, phase margin, and stability. A good starting point is to use the recommended values in the datasheet and then adjust them based on your specific application requirements. You can also use TI's PLL Loop Filter Design Tool to help with the design process.
When selecting a crystal oscillator for the LMX2491RTWR, consider the frequency range, load capacitance, and equivalent series resistance (ESR). The crystal should be able to operate within the desired frequency range, and the load capacitance should match the recommended value in the datasheet. Additionally, the ESR should be as low as possible to minimize startup time and ensure reliable operation.
To troubleshoot common issues with the LMX2491RTWR, start by checking the PCB layout and ensuring that it meets the recommended guidelines. Next, verify that the power supply is clean and stable, and that the device is properly configured. Use a spectrum analyzer to measure the output spectrum and identify any spurious tones or phase noise. Finally, consult the datasheet and application notes for troubleshooting guides and tips.
The LMX2491RTWR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management. This can be achieved by using a heat sink, ensuring good airflow, and minimizing the thermal resistance between the device and the PCB. Additionally, consider using thermal interface materials to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2491RTWR Overview

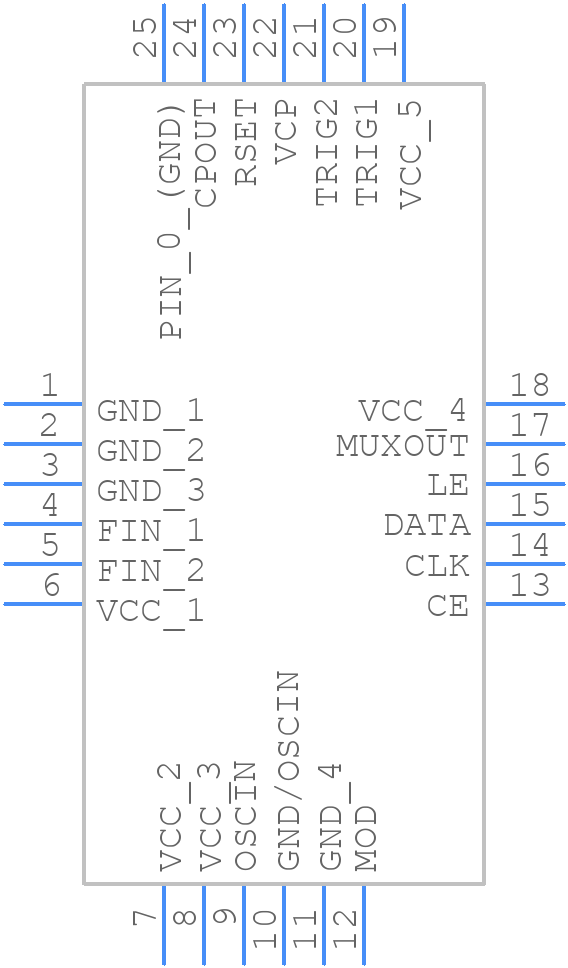

Use the download button to access the LMX2491RTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
