A good PCB layout for the LMX2541SQ2060E/NOPB involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage supply and biasing scheme outlined in the datasheet. This typically involves connecting the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. Additionally, ensure that the input and output impedance are matched to minimize signal reflections.
The LMX2541SQ2060E/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink attached to the device. Additionally, ensure that the device is operated within the recommended temperature range of -40°C to 85°C.
To troubleshoot common issues, start by verifying that the device is properly biased and that the input and output impedance are matched. Check for any signs of oscillation or instability, such as excessive current draw or voltage fluctuations. Use an oscilloscope to visualize the output signal and identify any anomalies. If issues persist, consult the datasheet and application notes for guidance.
The LMX2541SQ2060E/NOPB has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store the device in an anti-static bag or container. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2541SQ2060E/NOPB Overview

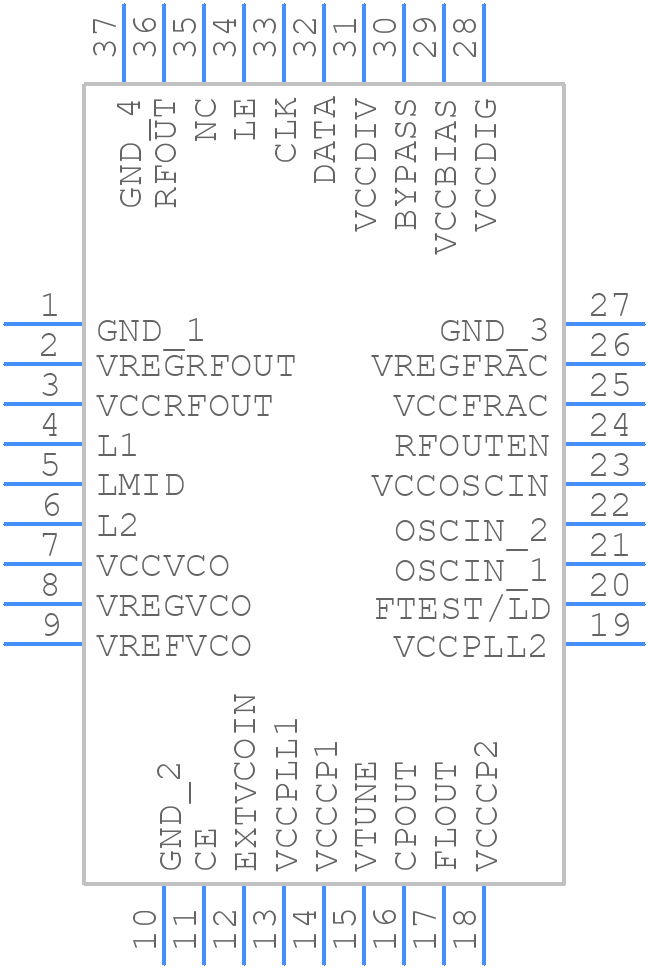

Use the download button to access the LMX2541SQ2060E/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
