LMX2541SQ2380E/NOPB - Texas Instruments

Description: Ultra-Low Noise PLLatinum Frequency Synthesizer with Integrated VCO

Download LMX2541SQ2380E/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

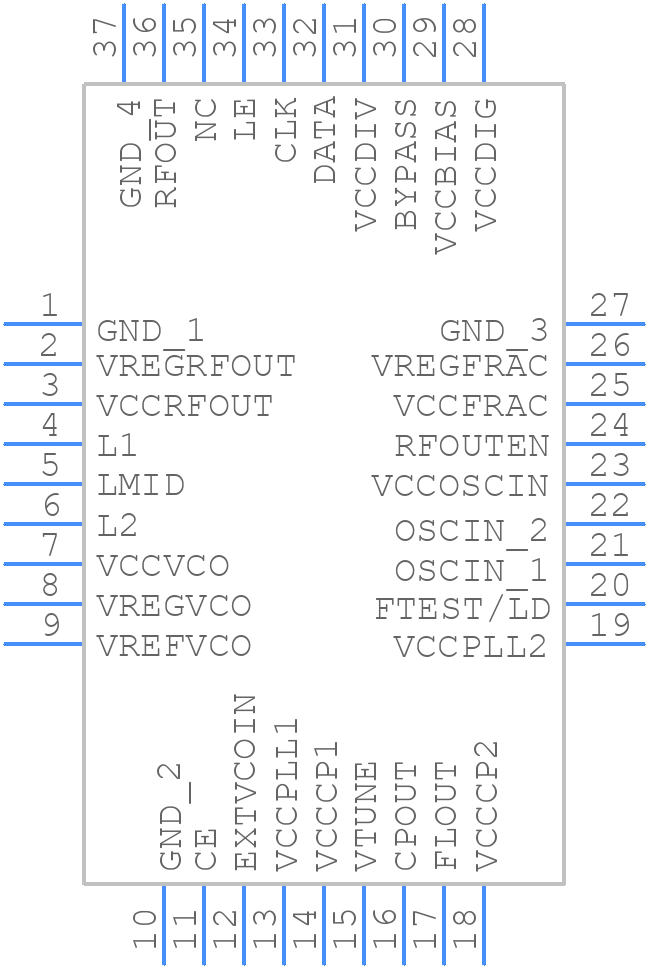

LMX2541SQ2380E/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2541SQ2380E/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJK0036A
click to zoom
3D Models
LMX2541SQ2380E/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NJK0036A
click to zoom

LMX2541SQ2380E/NOPB Details

  • Manufacturer Part Number:

    LMX2541SQ2380E/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    4000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    204 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2541SQ2380E/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMX2541SQ2380E/NOPB involves keeping the input and output tracks short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and decouple it with a 10uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 2.97V to 3.63V.
  • The recommended clock input frequency range for the LMX2541SQ2380E/NOPB is 10MHz to 160MHz. However, the device can operate at frequencies up to 200MHz with reduced performance.
  • The LMX2541SQ2380E/NOPB can be programmed using a 3-wire serial interface. Use the SPI-compatible interface to set the desired frequency output by writing to the device's registers. Refer to the datasheet for the register map and programming details.
  • The typical power consumption of the LMX2541SQ2380E/NOPB is around 350mW at 3.3V supply voltage and 100MHz output frequency. However, power consumption may vary depending on the output frequency and load conditions.
