A good PCB layout for the LMX2541SQ3740E/NOPB involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage supply and biasing scheme outlined in the datasheet. This typically involves connecting the VCC pin to a stable voltage source, and the VEE pin to a stable voltage source or ground, depending on the application. Additionally, ensure that the input and output impedance are properly matched to minimize signal reflections.
The LMX2541SQ3740E/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, to dissipate heat generated by the device. Additionally, ensure that the device is operated within the recommended temperature range and that the PCB is designed to minimize thermal resistance.
To troubleshoot issues with the LMX2541SQ3740E/NOPB, start by verifying that the device is properly biased and that the input and output impedance are properly matched. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The LMX2541SQ3740E/NOPB has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-controlled environment, and that all personnel handling the device wear ESD-protective wrist straps or use ESD-protective mats.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2541SQ3740E/NOPB Overview

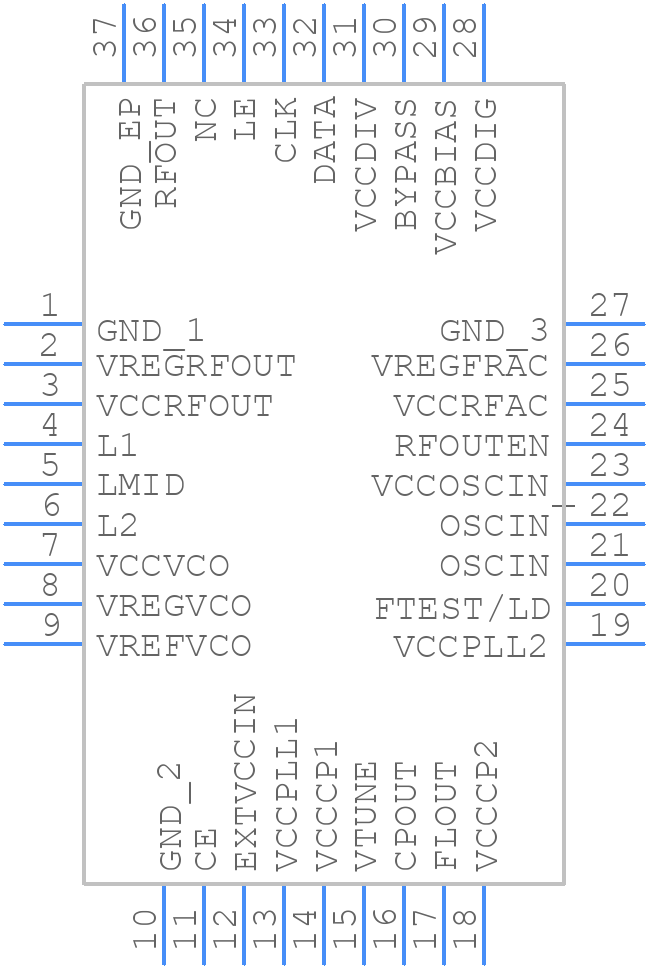

Use the download button to access the LMX2541SQ3740E/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
