LMX2541SQE2060E/NOPB - Texas Instruments

Description: Ultra-Low Noise PLLatinum Frequency Synthesizer with Integrated VCO

Download LMX2541SQE2060E/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

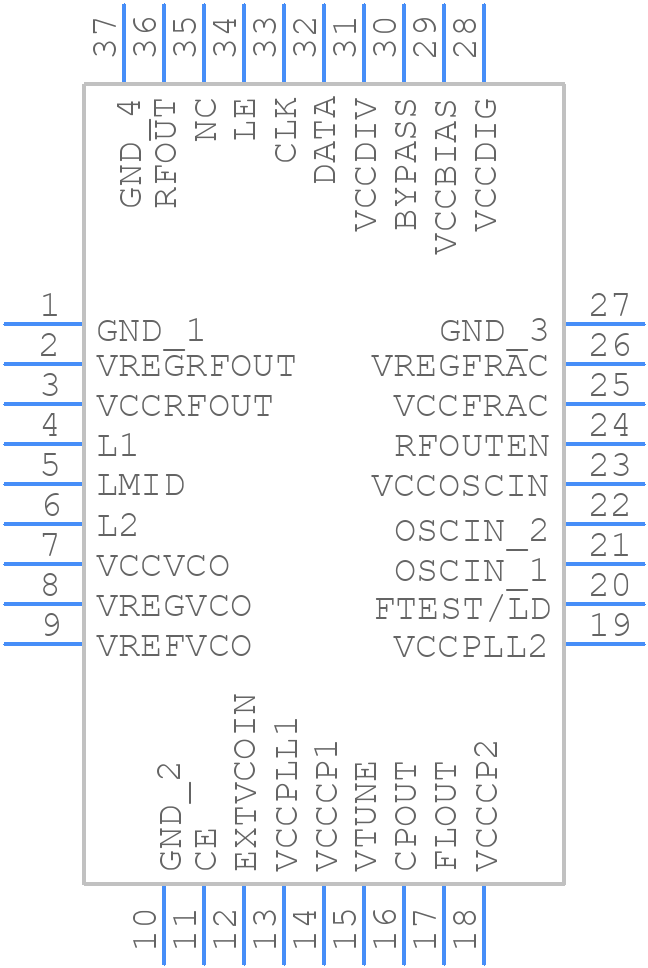

LMX2541SQE2060E/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2541SQE2060E/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJK0036A
click to zoom
3D Models
LMX2541SQE2060E/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NJK0036A
click to zoom

LMX2541SQE2060E/NOPB Details

  • Manufacturer Part Number:

    LMX2541SQE2060E/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    4000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    204 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2541SQE2060E/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMX2541SQE2060E/NOPB involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The VCC pin should be bypassed to ground with a 10uF capacitor as well. Additionally, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The maximum power dissipation of the LMX2541SQE2060E/NOPB is 350mW. However, it's recommended to keep the power dissipation below 250mW to ensure reliable operation and to prevent overheating.
  • The LMX2541SQE2060E/NOPB can be programmed using a 3-wire serial interface. The device has a 24-bit register that controls the output frequency. The frequency can be calculated using the formula: f_OUT = (F_CLK x N) / R, where F_CLK is the clock frequency, N is the divider value, and R is the output divider value.
  • The typical startup time of the LMX2541SQE2060E/NOPB is 10ms. However, this time can vary depending on the specific application and the quality of the power supply.
