Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
The LMX2541SQE3030E/NOPB requires a specific bias voltage and current to operate optimally. Refer to the datasheet for the recommended bias conditions, and ensure that the voltage and current sources are stable and noise-free.
The maximum power handling capability of the LMX2541SQE3030E/NOPB is not explicitly stated in the datasheet, but it's typically limited by the device's thermal characteristics and package type. Consult with Texas Instruments' application engineers or refer to similar devices' datasheets for guidance.
Common issues with the LMX2541SQE3030E/NOPB can often be attributed to improper biasing, poor PCB layout, or inadequate decoupling. Consult the datasheet and application notes for troubleshooting guidelines, and consider using simulation tools or seeking assistance from Texas Instruments' application engineers.
Yes, the LMX2541SQE3030E/NOPB is a high-frequency device that can be susceptible to EMI/EMC issues. Ensure that the device is properly shielded, and follow good EMI/EMC design practices, such as using filters, chokes, and shielding to minimize radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2541SQE3030E/NOPB Overview

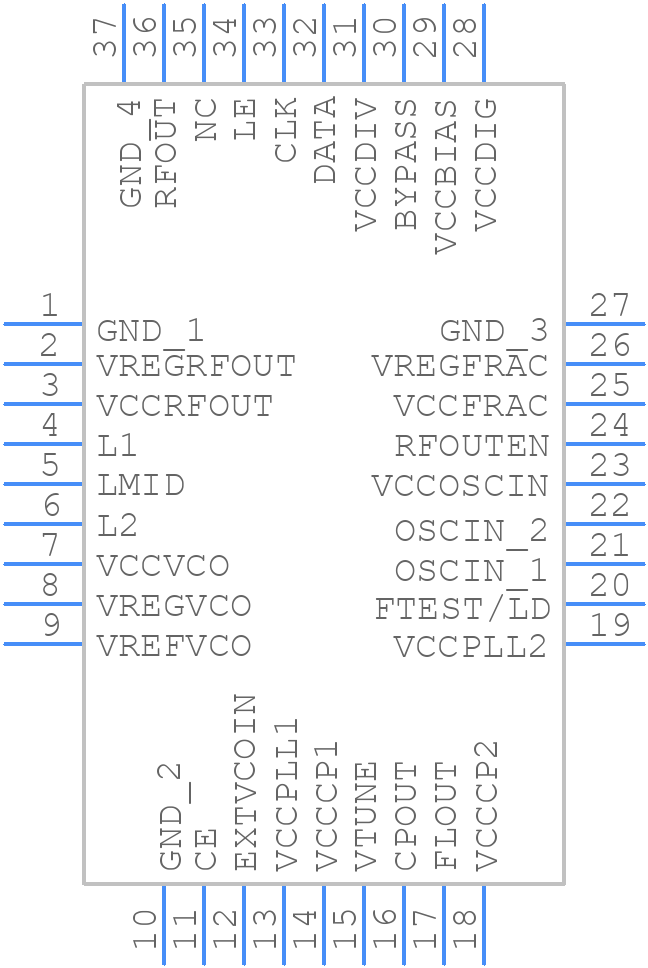

Use the download button to access the LMX2541SQE3030E/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
