Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
The LMX2541SQE3740E/NOPB requires a specific bias voltage and current to operate optimally. Refer to the datasheet for the recommended bias conditions, and ensure that the voltage and current sources are stable and noise-free.
The LMX2541SQE3740E/NOPB is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance and power consumption at higher temperatures to ensure reliable operation.
Troubleshooting issues with the LMX2541SQE3740E/NOPB requires a systematic approach. Start by verifying the device's bias conditions, then check the PCB layout and component values. Use signal integrity analysis tools and measurement equipment, such as spectrum analyzers and oscilloscopes, to identify the root cause of the issue.
Yes, the LMX2541SQE3740E/NOPB can be used in non-50-ohm systems, but impedance matching is critical to ensure optimal performance. Use impedance-matching networks, such as transformers or LC networks, to match the device's input and output impedances to the system's impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2541SQE3740E/NOPB Overview

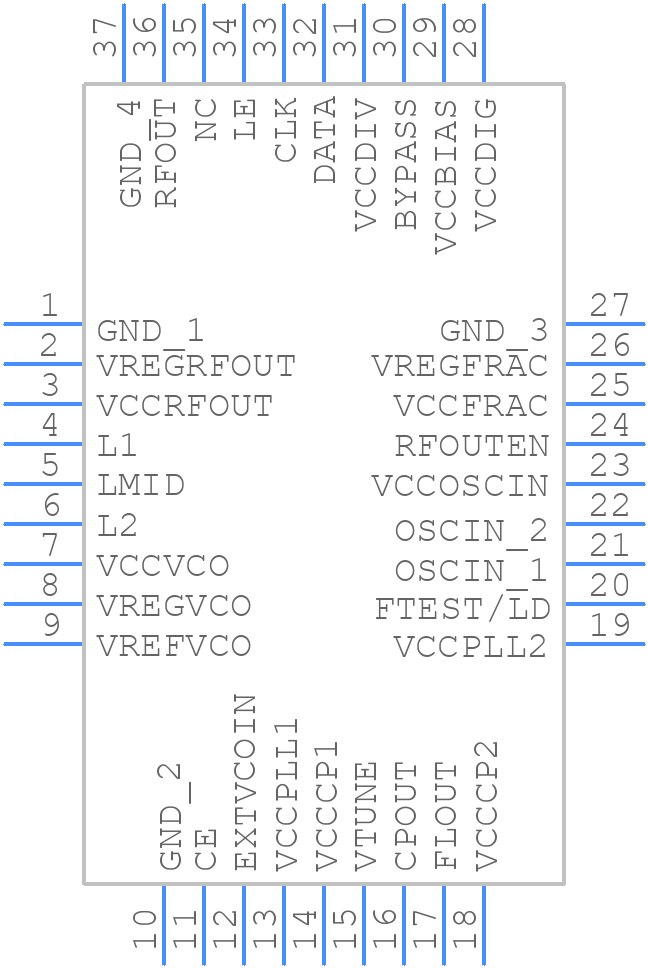

Use the download button to access the LMX2541SQE3740E/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
