LMX2572LPRHAT - Texas Instruments

Description: 2-GHz Low Power Wideband RF Synthesizer With FSK Modulation

Download LMX2572LPRHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

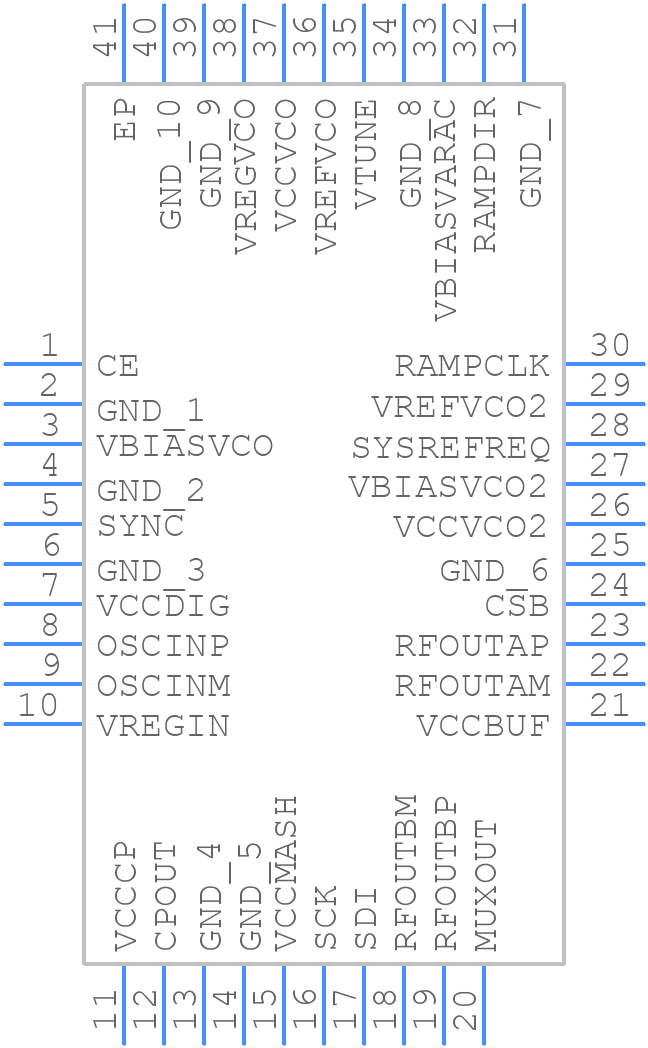

LMX2572LPRHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2572LPRHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN 40
click to zoom
3D Models
LMX2572LPRHAT - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN 40
click to zoom

LMX2572LPRHAT Details

  • Manufacturer Part Number:

    LMX2572LPRHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    2000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2572LPRHAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-connection for the power supply to minimize noise.
  • Use the TI PLL Loop Filter Design Tool or a similar tool to optimize the loop filter design. The tool helps to calculate the component values for the loop filter based on the desired bandwidth, phase margin, and other parameters.
  • Power up the device in the following sequence: VDD, AVDD, DVDD, and finally, the clock input. This sequence helps to prevent latch-up and ensures proper device operation.
  • Use a spectrum analyzer to measure the output spectrum and identify the source of the issue. Check the PCB layout, power supply, and clock input for any noise or jitter. Also, verify that the loop filter is properly designed and implemented.
  • Yes, the LMX2572LPRHAT can be used with a different clock input frequency, but the device's internal PLL must be reconfigured accordingly. Use the TI PLL Calculator tool to determine the required PLL settings for the new clock input frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2572LPRHAT Overview

Use the download button to access the LMX2572LPRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
