A good PCB layout for the LMX2572RHAR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground.
To optimize the loop filter design, you should consider the desired PLL bandwidth, phase noise, and spurious performance. A good starting point is to use the recommended loop filter component values provided in the datasheet, and then adjust them based on your specific application requirements.
The LMX2572RHAR can handle input frequencies up to 1.5 GHz. However, the maximum input frequency may vary depending on the specific application and the desired performance. It's recommended to consult the datasheet and application notes for more information.
To program the LMX2572RHAR using the SPI interface, you need to follow the SPI protocol and timing requirements specified in the datasheet. You can use a microcontroller or a dedicated SPI programmer to send the required commands and data to the device.
The typical power consumption of the LMX2572RHAR is around 350 mW, but it can vary depending on the specific application, frequency of operation, and output power. It's recommended to consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2572RHAR Overview

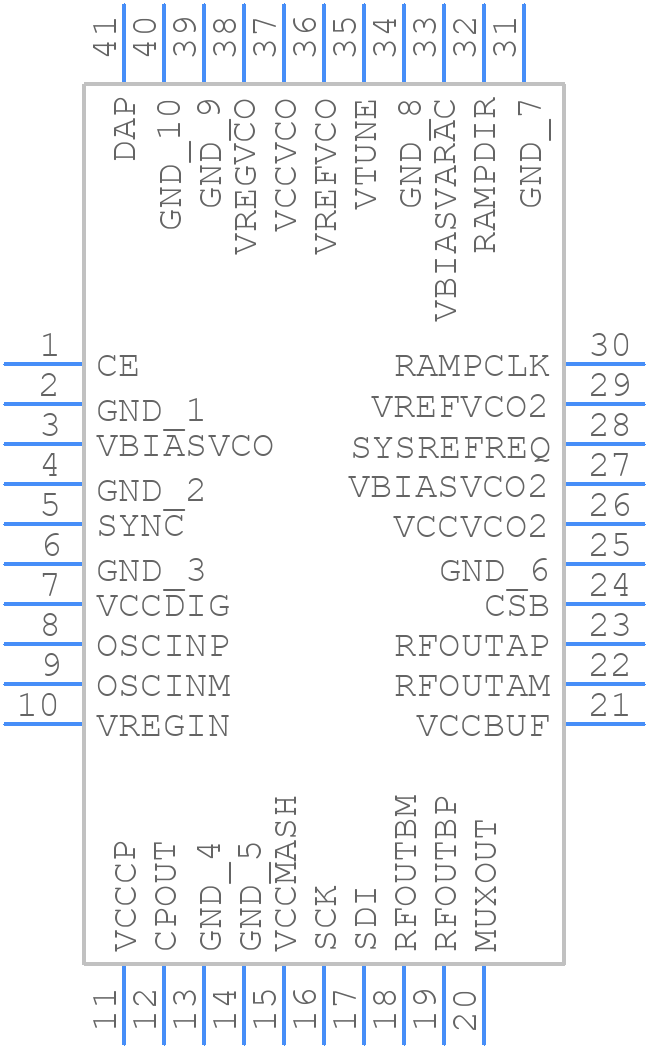

Use the download button to access the LMX2572RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
