A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-configuration for the power supply connections. Also, use a common mode filter or a pi-filter to reduce noise and EMI.
Use the TI PLL Loop Filter Design Tool or a similar tool to optimize the loop filter design. The tool helps to calculate the optimal values for the loop filter components based on the desired phase noise performance, loop bandwidth, and other parameters.
Power up the device in the following sequence: VCC, then AVDD, and finally DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock input signal.
Use a spectrum analyzer or a phase noise analyzer to measure the output frequency and phase noise. Check the power supply voltage, clock input signal, and loop filter component values. Also, verify that the device is operated within the recommended temperature range and that the PCB layout is correct.
Yes, the LMX2581ESQE/NOPB can be used in a push-pull configuration. This configuration can provide improved phase noise performance, increased output power, and reduced spurious emissions. However, it requires careful design and layout to ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2581ESQE/NOPB Overview

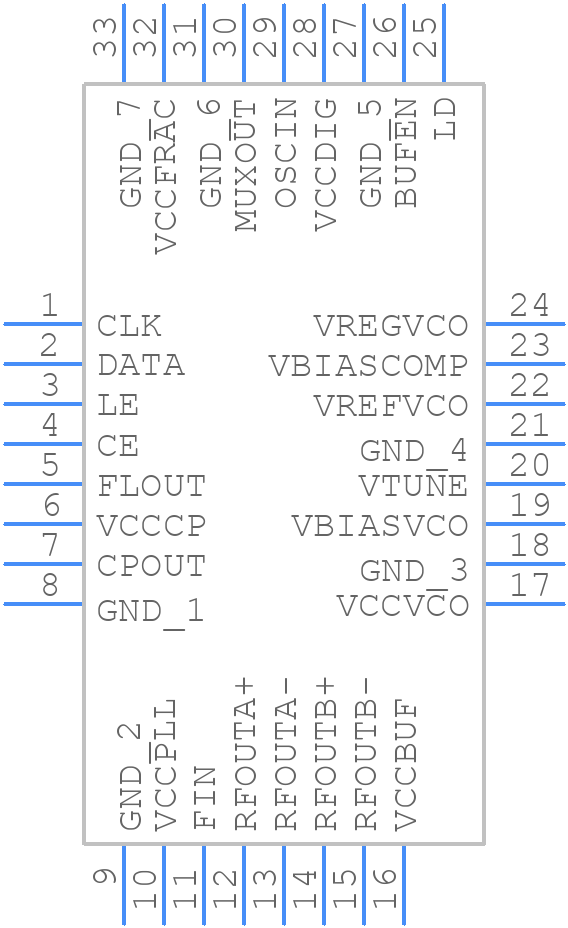

Use the download button to access the LMX2581ESQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
