LMX2592RHAR - Texas Instruments

Description: Phase Locked Loops - PLL 9.8-GHz wideband frequency synthesizer with integrated VCO 40-VQFN -40 to 85

Download LMX2592RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

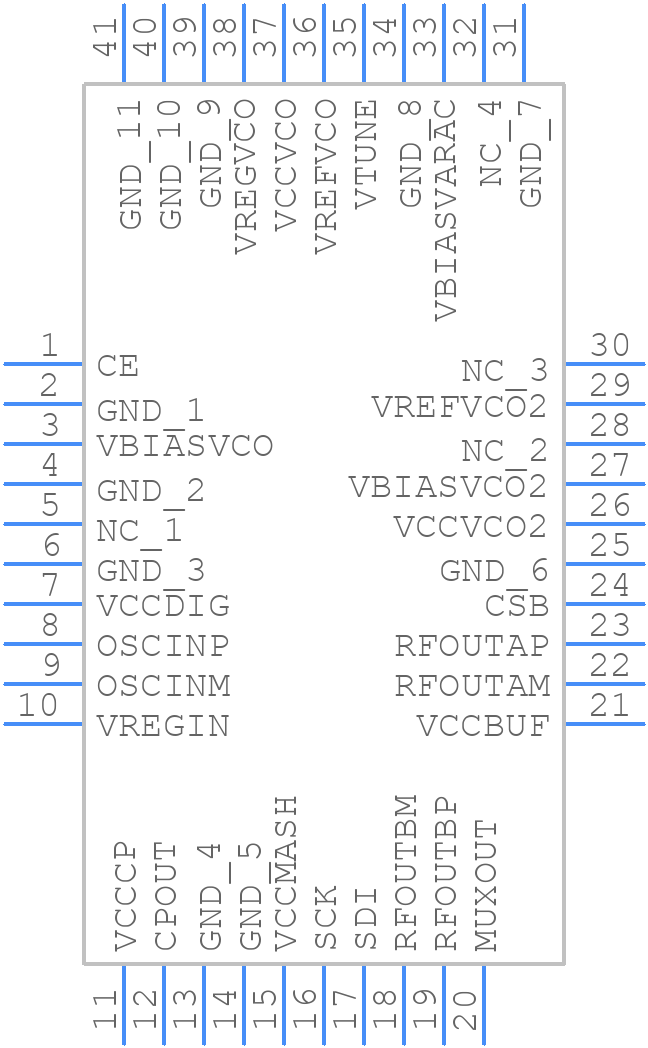

LMX2592RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2592RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040H-021
click to zoom
3D Models
LMX2592RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040H-021
click to zoom

LMX2592RHAR Details

  • Manufacturer Part Number:

    LMX2592RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    9800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2592RHAR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin. Keep the loop area of the oscillator circuit as small as possible.
  • Use the TI's Clock Design Tool or the LMX2592RHAR Evaluation Module to generate the desired frequency output. The tool allows you to select the input frequency, output frequency, and other parameters to generate the required register settings.
  • The maximum input frequency that the LMX2592RHAR can handle is 250 MHz. However, the device can also be used with an external frequency multiplier to generate higher frequencies.
  • To ensure low jitter, use a high-quality crystal oscillator as the input clock source, keep the PCB layout clean and well-decoupled, and use a low-jitter PLL loop filter. Also, ensure that the device is operated within its recommended operating conditions.
  • Yes, the LMX2592RHAR can be used in a redundant clocking system. The device has a built-in clock switch-over feature that allows it to automatically switch to a backup clock source in case of a failure.
