LMX2595RHAT - Texas Instruments

Description: 10 MHz - 19 GHz Wideband RF Synthesizer with Phase Synchronization and JESD204B support

Download LMX2595RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

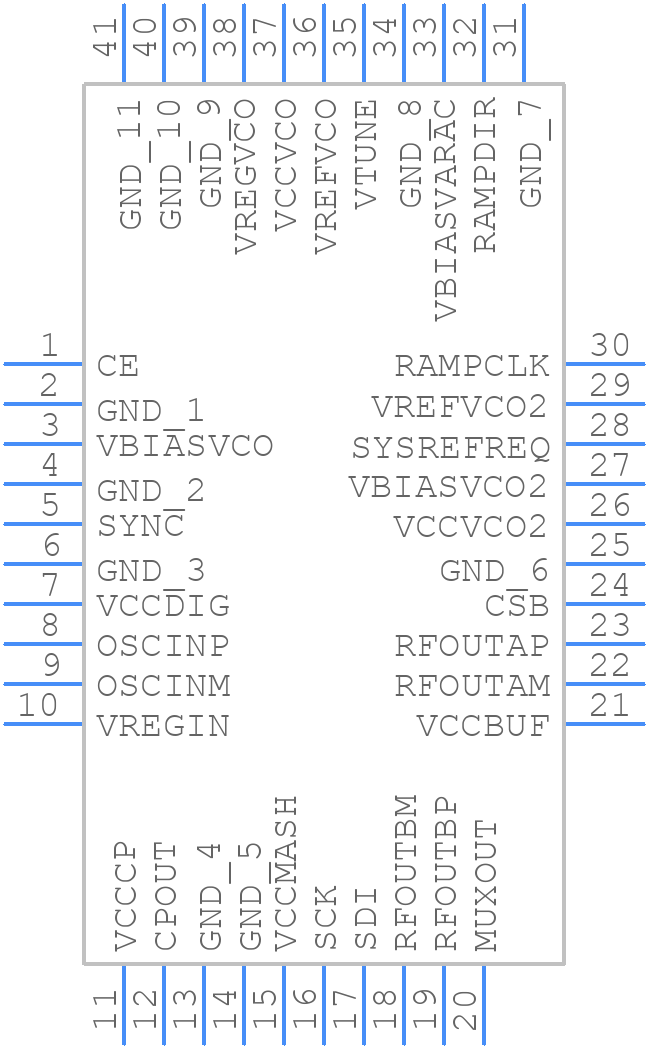

LMX2595RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2595RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA (S-PVQFN-N40)_2
click to zoom
3D Models
LMX2595RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA (S-PVQFN-N40)_2
click to zoom

LMX2595RHAT Details

  • Manufacturer Part Number:

    LMX2595RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    19000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2595RHAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin. Keep the loop area of the oscillator circuit as small as possible.
  • Use the TI's Clock Design Tool or the LMX2595RHAT Evaluation Module to generate the desired frequency output. The tool allows you to select the input frequency, output frequency, and other parameters to generate the required register settings.
  • A low-jitter, high-frequency clock source such as a crystal oscillator or a high-quality clock generator is recommended. The input clock frequency should be between 10MHz and 250MHz.
  • Use the POR (Power-On Reset) pin to ensure the device is in a valid operating state after power-up. The POR pin should be connected to a 10kΩ pull-up resistor and a 0.1uF capacitor to VCC.
  • The maximum output frequency of the LMX2595RHAT is 9.8GHz. However, the maximum output frequency may vary depending on the specific configuration and application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2595RHAT Overview

Use the download button to access the LMX2595RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25, or try a keyword search, such as PLL or Frequency Synthesis Circuits
