LMX2694SRTCTSEP - Texas Instruments

Description: Phase Locked Loops - PLL Radiation hardened 15-GHz wideband PLLatinum RF synthesizer

Download LMX2694SRTCTSEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

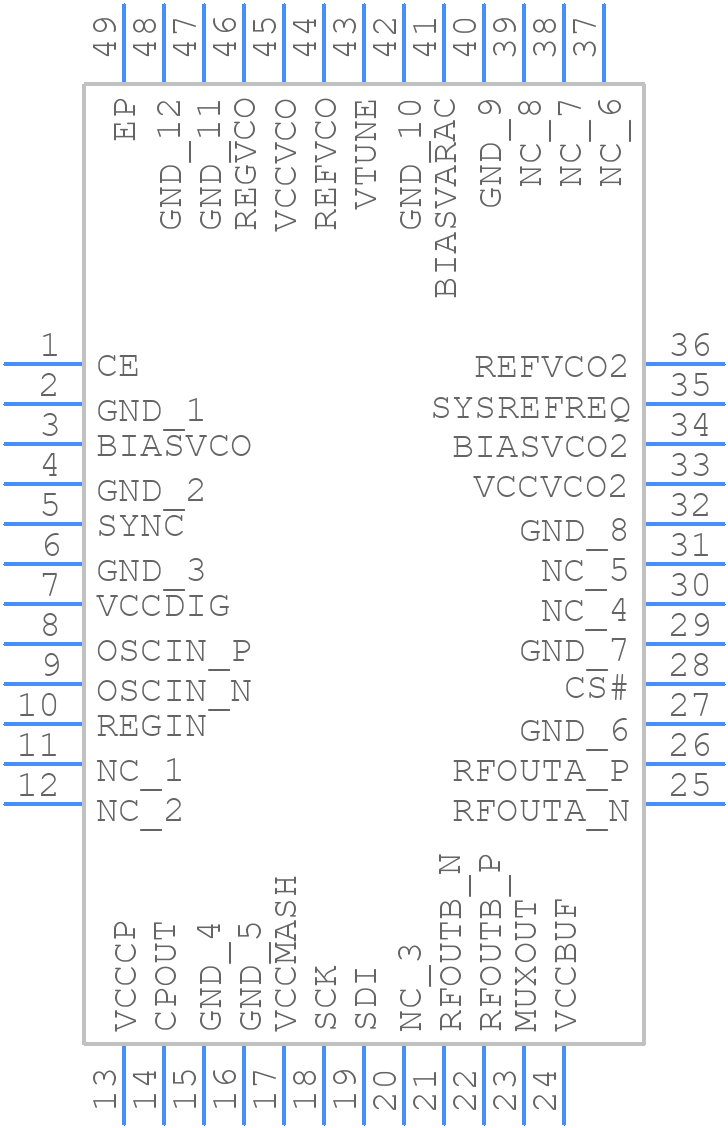

Symbol
LMX2694SRTCTSEP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2694SRTCTSEP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC0048G
click to zoom
3D Models
LMX2694SRTCTSEP - Texas Instruments - 3D model - Quad Flat No-Lead - RTC0048G
click to zoom

LMX2694SRTCTSEP Details

  • Manufacturer Part Number:

    LMX2694SRTCTSEP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Frequency-Max:

    15100 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMX2694SRTCTSEP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the TI PLL Loop Filter Design Tool or consult the datasheet's PLL loop filter design guidelines. Consider the desired loop bandwidth, phase noise, and spurious performance for your specific application.
  • The maximum input power is +10 dBm. Exceeding this may cause damage to the device or affect its performance. Use an attenuator or a limiter to ensure the input power is within the recommended range.
  • Use the SPI interface to program the device's registers. Consult the datasheet's register map and programming guide to set the desired frequency, bandwidth, and other parameters for your specific frequency band.
  • The typical current consumption is around 450 mA at 3.3V supply voltage. However, this may vary depending on the specific configuration, frequency, and operating conditions.
