LMX2820RTCT - Texas Instruments

Description: Phase Locked Loops - PLL 22.6-GHz wideband RF synthesizer with phase synchronization, JESD and <5- us frequency calibration 48-VQFN -40 to 85

Download LMX2820RTCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

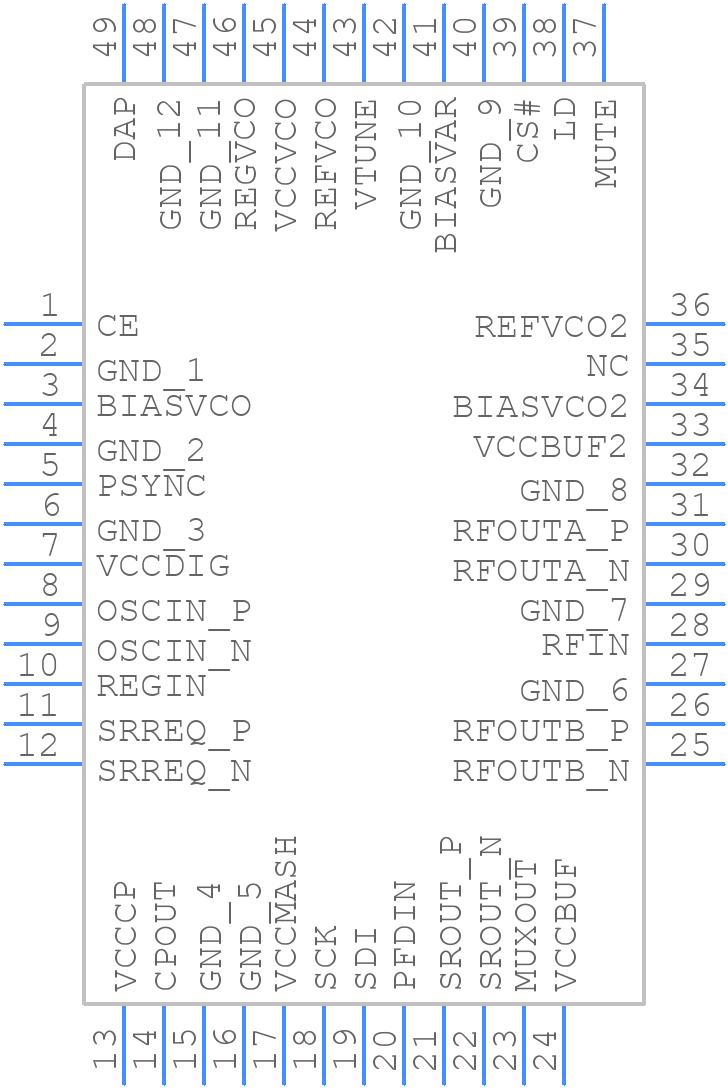

Symbol
LMX2820RTCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2820RTCT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LMX2820RTCT
click to zoom
3D Models
LMX2820RTCT - Texas Instruments - 3D model - Quad Flat No-Lead - LMX2820RTCT
click to zoom

LMX2820RTCT Details

  • Manufacturer Part Number:

    LMX2820RTCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    22600 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LMX2820RTCT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
  • Use the TI-provided Loop Filter Design Tool or consult the datasheet's loop filter design guidelines. Ensure the filter is optimized for the desired bandwidth, phase margin, and gain.
  • Choose a crystal with a frequency tolerance of ±20 ppm or better, and ensure the oscillator's ESR (Equivalent Series Resistance) is within the recommended range (typically <50 ohms).
  • Use a combination of ceramic and electrolytic capacitors (e.g., 100 nF and 10 μF) to decouple the power supply. Place the capacitors close to the device's power pins, and ensure the PCB layout minimizes inductance.
  • The device has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Monitor the device's thermal performance using the thermal shutdown feature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2820RTCT Overview

Use the download button to access the LMX2820RTCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX28, or try a keyword search, such as PLL or Frequency Synthesis Circuits
