LMX324IDT - STMicroelectronics

Description: General-purpose, low voltage rail-to-rail output operational amplifiers

Download LMX324IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

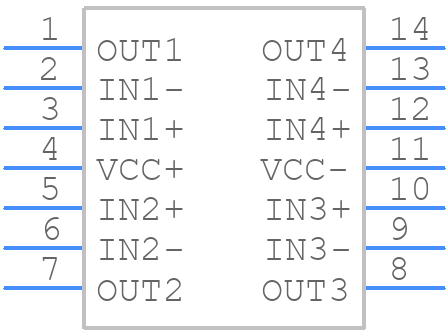

LMX324IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LMX324IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
LMX324IDT - STMicroelectronics - 3D model - Small Outline Packages - SO14
click to zoom

LMX324IDT Details

  • Manufacturer Part Number:

    LMX324IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.11 µA

  • Bias Current-Max (IIB) @25C:

    0.06 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    14

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    0.72 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm
