LMX358IQ2T - STMicroelectronics

Description: General-purpose, low voltage rail-to-rail output operational amplifiers

Download LMX358IQ2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

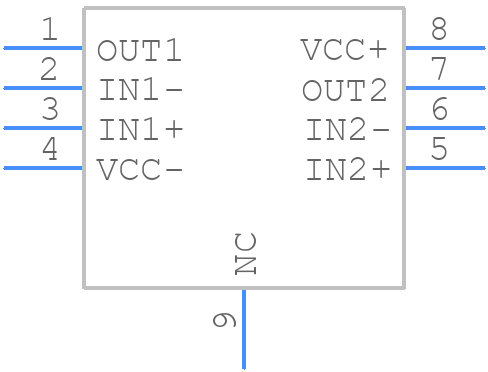

Symbol
LMX358IQ2T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LMX358IQ2T - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - LMX358IQ2T
click to zoom
3D Models
LMX358IQ2T - STMicroelectronics - 3D model - Small Outline No-lead - LMX358IQ2T
click to zoom

LMX358IQ2T Details

  • Manufacturer Part Number:

    LMX358IQ2T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, 0.60 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, DFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.11 µA

  • Bias Current-Max (IIB) @25C:

    0.06 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    8

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.6 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    0.36 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    31622.77

  • Wideband:

    NO

  • Width:

    2 mm

LMX358IQ2T Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMX358IQ2T involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the LMX358IQ2T, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power supply lines are properly filtered and shielded.
  • The recommended operating temperature range for the LMX358IQ2T is -40°C to 125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's recommended to operate within a narrower range (e.g., 0°C to 85°C) for optimal performance.
  • To troubleshoot issues with the LMX358IQ2T, start by checking the PCB layout, power supply, and decoupling. Ensure that the device is properly powered and decoupled, and that the PCB layout is correct. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance.
  • The LMX358IQ2T is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters. Consult the datasheet and application notes for guidance on using the LMX358IQ2T in high-reliability or safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX358IQ2T Overview

Use the download button to access the LMX358IQ2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX35, or try a keyword search, such as Operational Amplifiers
