The recommended PCB layout for the LMZ10501SILR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the performance of the LMZ10501SILR, ensure that the input voltage is within the recommended range, use a low-ESR output capacitor, and minimize the output voltage ripple. Additionally, optimize the PCB layout, and use a low-impedance output filter to reduce noise and ripple.
The maximum ambient temperature range for the LMZ10501SILR is -40°C to 125°C. However, the device can operate up to 150°C with derating.
Yes, the LMZ10501SILR is suitable for high-reliability applications. It is built with a robust design, and Texas Instruments provides a high-reliability version of the device that meets the requirements of the aerospace and defense industries.
To troubleshoot issues with the LMZ10501SILR, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the output. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ10501SILR Overview

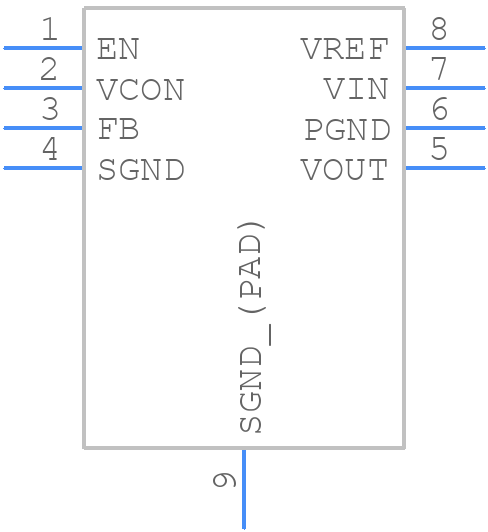

Use the download button to access the LMZ10501SILR schematic symbol, PCB footprint, and 3D model.
