LMZ10503TZE-ADJ/NOPB - Texas Instruments

Description: Switching Voltage Regulators 3A Pwr Mod w/ 5.5V Max Input Vtg

Download LMZ10503TZE-ADJ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

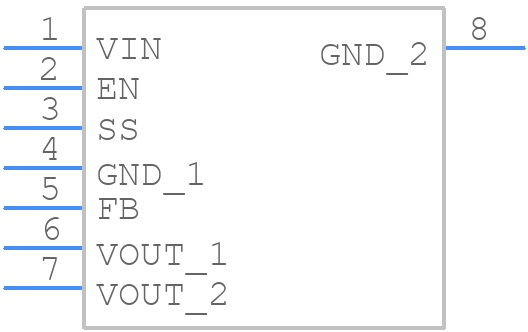

LMZ10503TZE-ADJ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ10503TZE-ADJ/NOPB - Texas Instruments PCB footprint - Other - Other - LMZ10503TZE-ADJ/NOPB-1
click to zoom

LMZ10503TZE-ADJ/NOPB Details

  • Manufacturer Part Number:

    LMZ10503TZE-ADJ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.95 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP7H,.55,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.58 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LMZ10503TZE-ADJ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ10503TZE-ADJ/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stability, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high capacitance value. Also, add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to filter high-frequency noise. Additionally, ensure that the input capacitor is properly sized and placed close to the device.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This type of capacitor provides a low ESR and is suitable for high-frequency switching applications.
  • The output voltage of the LMZ10503TZE-ADJ/NOPB can be adjusted by using a resistor divider network between the output and the ADJ pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.21V). Consult the datasheet for the specific resistor values and calculation formula.
  • The LMZ10503TZE-ADJ/NOPB is rated for operation from -40°C to 125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and derate the device's performance accordingly.
