LMZ10504TZE-ADJ/NOPB - Texas Instruments

Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5V 4A 2.95V - 5.5V Input , 2.95V , 5.5V , -40°C ~ 125°C

Download LMZ10504TZE-ADJ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

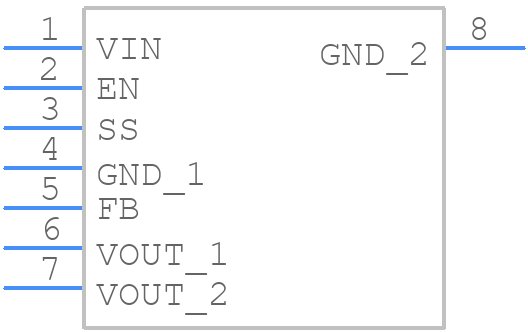

LMZ10504TZE-ADJ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ10504TZE-ADJ/NOPB - Texas Instruments PCB footprint - Other - Other - NDW0007A_2025-1
click to zoom

LMZ10504TZE-ADJ/NOPB Details

  • Manufacturer Part Number:

    LMZ10504TZE-ADJ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.95 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.58 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LMZ10504TZE-ADJ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ10504TZE-ADJ/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
  • To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating. You can also add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The maximum input voltage for the LMZ10504TZE-ADJ/NOPB is 15V. Exceeding this voltage may damage the device. Ensure that the input voltage is within the recommended operating range to maintain device reliability and performance.
  • The LMZ10504TZE-ADJ/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heatsinked and that the operating temperature is within the recommended range to maintain optimal performance.
  • The output voltage of the LMZ10504TZE-ADJ/NOPB can be adjusted by using the ADJ pin. Connect a resistor divider network between the output voltage and the ADJ pin to set the desired output voltage. The datasheet provides a formula to calculate the required resistor values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMZ10504TZE-ADJ/NOPB Overview

Use the download button to access the LMZ10504TZE-ADJ/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ10, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
