LMZ10505TZE-ADJ/NOPB - Texas Instruments

Description: Texas Instruments, LMZ10505TZE-ADJ/NOPB DC-DC Converter 5A Adjustable, 0.8 → 5 V, 7-Pin TO-PMOD

Download LMZ10505TZE-ADJ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

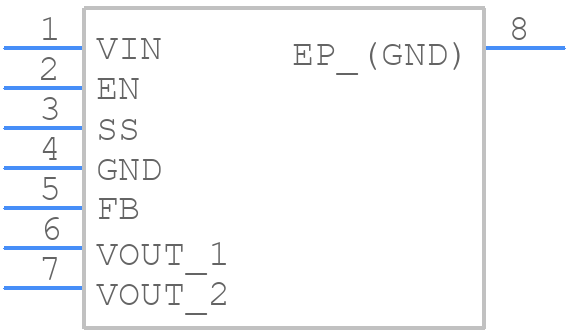

LMZ10505TZE-ADJ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ10505TZE-ADJ/NOPB - Texas Instruments PCB footprint - Other - Other - NDW0007A
click to zoom
3D Models
LMZ10505TZE-ADJ/NOPB - Texas Instruments - 3D model - Other - NDW0007A
click to zoom

LMZ10505TZE-ADJ/NOPB Details

  • Manufacturer Part Number:

    LMZ10505TZE-ADJ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPRERATES IN ADJUSTABLE MODE FROM 0.8 TO 5 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.95 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP7H,.55,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.58 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LMZ10505TZE-ADJ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ10505TZE-ADJ/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum ESR (Equivalent Series Resistance) of 10mΩ for the output capacitor is recommended. TI also provides a stability analysis tool to help with component selection.
  • The maximum input voltage for the LMZ10505TZE-ADJ/NOPB is 15V. Exceeding this voltage may cause damage to the device. It's essential to ensure that the input voltage remains within the recommended operating range.
  • The output voltage of the LMZ10505TZE-ADJ/NOPB can be adjusted by connecting a resistor divider network between the output and the ADJ pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The maximum output current of the LMZ10505TZE-ADJ/NOPB is 5A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to ensure that the device operates within its recommended operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMZ10505TZE-ADJ/NOPB Overview

Use the download button to access the LMZ10505TZE-ADJ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ10, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
