LMZ12002TZE-ADJ/NOPB - Texas Instruments

Description: 2A DC-DC Module 0.8V-6V 12W TO-PMOD7EP Texas Instruments, LMZ12002TZE-ADJ/NOPB DC-DC Converter 2A Adjustable, 0.8 → 6 V, 7-Pin TO-PMOD

Download LMZ12002TZE-ADJ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

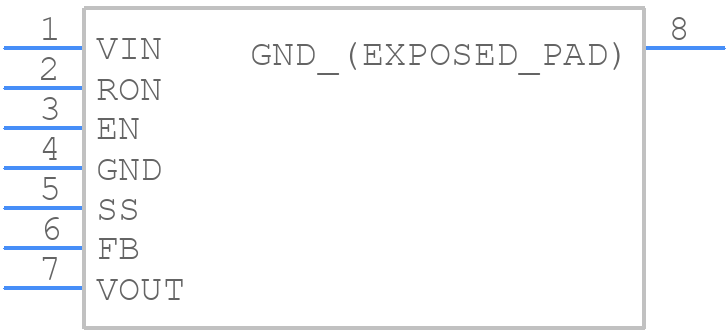

LMZ12002TZE-ADJ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ12002TZE-ADJ/NOPB - Texas Instruments PCB footprint - Other - Other - NDW0007A
click to zoom
3D Models
LMZ12002TZE-ADJ/NOPB - Texas Instruments - 3D model - Other - NDW0007A
click to zoom

LMZ12002TZE-ADJ/NOPB Details

  • Manufacturer Part Number:

    LMZ12002TZE-ADJ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SIMPLE SWITCHER

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP7H,.55,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.58 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LMZ12002TZE-ADJ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ12002TZE-ADJ/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback resistors are chosen to provide a stable gain. Additionally, ensure that the device is operated within its recommended operating conditions and that the PCB layout is optimized for stability.
  • The maximum input voltage that the LMZ12002TZE-ADJ/NOPB can handle is 42V. Exceeding this voltage can cause damage to the device.
  • The LMZ12002TZE-ADJ/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is operated within its recommended operating conditions and that proper thermal management is implemented.
  • The output voltage of the LMZ12002TZE-ADJ/NOPB can be adjusted by using a resistive divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.225V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMZ12002TZE-ADJ/NOPB Overview

Use the download button to access the LMZ12002TZE-ADJ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ12, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
