LMZ12008TZE/NOPB - Texas Instruments

Description: 8A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage{0000}

Download LMZ12008TZE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

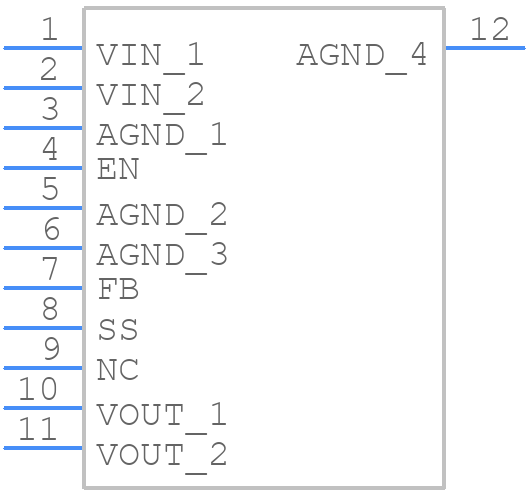

Symbol
LMZ12008TZE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ12008TZE/NOPB - Texas Instruments PCB footprint - Other - Other - LMZ12008TZE/NOPB-2
click to zoom
3D Models
LMZ12008TZE/NOPB - Texas Instruments - 3D model - Other - LMZ12008TZE/NOPB-2
click to zoom

LMZ12008TZE/NOPB Details

  • Manufacturer Part Number:

    LMZ12008TZE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PSSO-G11

  • JESD-609 Code:

    e3

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP11H,.7,50

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    404 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LMZ12008TZE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ12008TZE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating. A minimum output capacitance of 10uF is recommended.
  • The LMZ12008TZE/NOPB is rated for operation from -40°C to 125°C. However, for reliable operation, it's recommended to keep the ambient temperature between 0°C and 85°C to ensure optimal performance and longevity.
  • Yes, the LMZ12008TZE/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
  • The power dissipation of the LMZ12008TZE/NOPB can be calculated using the formula: Pd = (Vin - Vout) x Iout. The junction temperature can be estimated using the thermal resistance (RθJA) and the power dissipation. A thermal analysis or simulation tool can also be used to estimate the junction temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMZ12008TZE/NOPB Overview

Use the download button to access the LMZ12008TZE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ12, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
