A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal pad and heat sink away from high-frequency signals and noise sources is crucial.
To ensure a stable and regulated output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output voltage is set correctly using the feedback resistors. Also, minimize the noise and ripple on the input voltage and ensure good decoupling capacitors are used.
When handling the LMZ14202EXTTZ/NOPB, it's essential to take precautions to prevent damage. Handle the device by the body, not the pins, and avoid touching the pins or any other exposed metal parts. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the pins, and ensure the device is stored in an anti-static bag or container.
To troubleshoot issues with the LMZ14202EXTTZ/NOPB, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly connected and configured according to the datasheet. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for noise or ripple on the input and output voltages. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The LMZ14202EXTTZ/NOPB has a maximum junction temperature of 150°C. Ensure reliable operation by keeping the device within the recommended operating temperature range. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Monitor the device temperature using the thermal monitoring pin, and implement thermal shutdown or warning mechanisms to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ14202EXTTZ/NOPB Overview

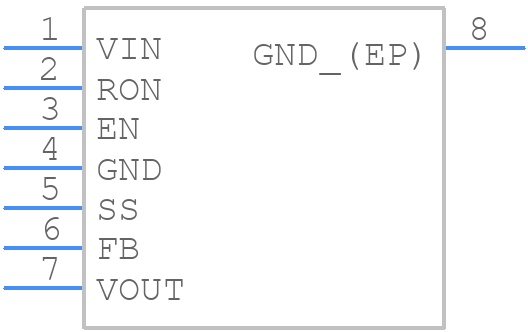

Use the download button to access the LMZ14202EXTTZ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ14,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
