A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good copper pour coverage around the device. Additionally, using a 2-3 layer PCB with a solid ground plane can help to reduce thermal resistance.
To ensure reliable start-up, it is recommended to add a soft-start circuit to the input voltage, and to use a capacitor with a low equivalent series resistance (ESR) at the input. Additionally, adding a noise filter, such as an LC filter, can help to reduce the impact of noise on the power supply.
The maximum allowed voltage transient on the input pin is 20% above the maximum recommended operating voltage, but not exceeding 24V. However, it is recommended to limit the voltage transient to 10% above the maximum recommended operating voltage to ensure reliable operation.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * Rl) / (f * Cout), where Iout is the output current, Rl is the load resistance, f is the switching frequency, and Cout is the output capacitance.
A low-ESR ceramic capacitor with a value of 10-22uF is recommended for optimal performance. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ14203HTZE/NOPB Overview

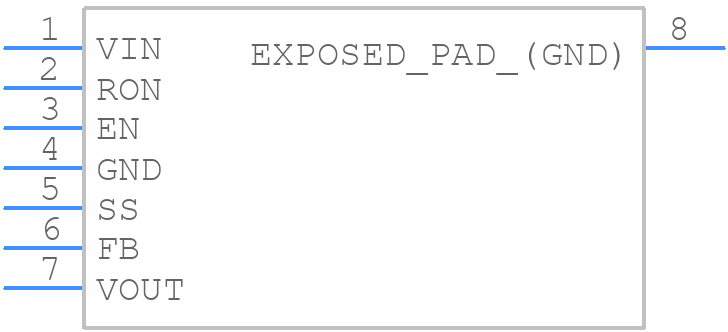

Use the download button to access the LMZ14203HTZE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ14,
or try a keyword search, such as Switching Regulator or Controllers
