Part Image

LMZ22003TZE/NOPB - Texas Instruments

Description: 3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Download LMZ22003TZE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

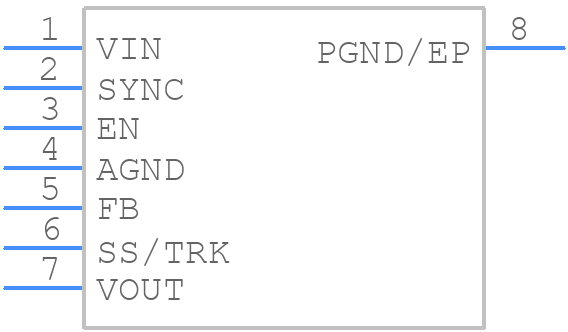

Symbol
LMZ22003TZE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ22003TZE/NOPB - Texas Instruments PCB footprint - Other - Other - NDW (7)
click to zoom
3D Models
LMZ22003TZE/NOPB - Texas Instruments - 3D model - Other - NDW (7)
click to zoom

LMZ22003TZE/NOPB Details

  • Manufacturer Part Number:

    LMZ22003TZE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    4.58 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    950 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LMZ22003TZE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ22003TZE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is of high quality and has a low equivalent series resistance (ESR). A minimum output capacitance of 10uF is recommended.
  • The maximum input voltage that can be applied to the LMZ22003TZE/NOPB is 6.5V. Exceeding this voltage may cause damage to the device.
  • The LMZ22003TZE/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor value, output current, and switching frequency. The noise can be calculated using the device's noise spectral density and the output capacitor value.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMZ22003TZE/NOPB Overview

Use the download button to access the LMZ22003TZE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ22, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LMZ22003TZE/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LMZ22003TZE/NOPB Alternates

Showing results

Image Part Number Model
Part Image LMZ22003TZX/NOPB Texas Instruments

Switching Regulator, Current-mode, 3A, 950kHz Switching Freq-Max, BICMOS, PSSO7
Part Image LMZ22003TZ/NOPB Rochester Electronics LLC

SWITCHING REGULATOR, 914kHz SWITCHING FREQ-MAX, PSSO7, 13.77 X 10.16 MM, 4.57 MM HEIGHT, ROHS COMPLIANT, TO-PMOD, 7 PIN
Part Image LMZ22003TZ/NOPB National Semiconductor Corporation

Switching Regulator, Current-mode, 3A, 914kHz Switching Freq-Max, PSSO7
Part Image LMZ22003TZ National Semiconductor Corporation

Switching Regulator, Current-mode, 914kHz Switching Freq-Max, PSSO7
Part Image LMZ22003TZX Texas Instruments

Switching Regulator, Current-mode, 914kHz Switching Freq-Max, BICMOS, PSSO7
For a full list of alternate parts for LMZ22003TZE/NOPB, check out Findchips.com
