A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal pad and heat sink away from high-frequency signals and noise sources is crucial.
To ensure a stable and regulated output voltage, it's essential to follow the recommended input and output capacitor values, and to use a low-ESR capacitor for the output filter capacitor. Additionally, the input voltage should be within the recommended range, and the device should be operated within its specified temperature range.
The maximum input voltage that can be applied to the LMZ22008TZ/NOPB is 18V. Exceeding this voltage may cause damage to the device or affect its performance.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * Rl) / (f * C), where ΔVout is the output voltage ripple, Iout is the output current, Rl is the load resistance, f is the switching frequency, and C is the output filter capacitance.
The recommended input capacitor value is 10uF to 22uF, and the recommended type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ22008TZ/NOPB Overview

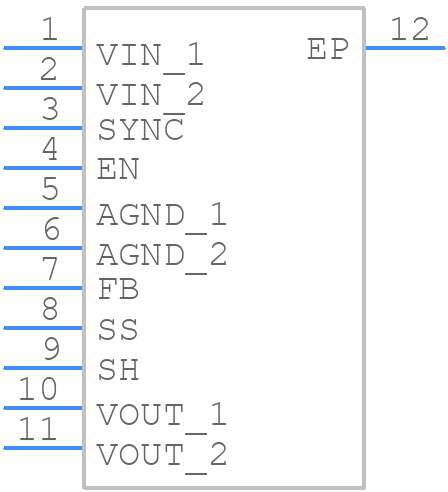

Use the download button to access the LMZ22008TZ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ22,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
