A good PCB layout for the LMZ23608TZ/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the LMZ23608TZ/NOPB operates within its recommended operating conditions, make sure to keep the input voltage within the recommended range of 2.7V to 5.5V, and the output current within the recommended range of 0A to 3A. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
The critical components that affect the LMZ23608TZ/NOPB's performance are the input and output capacitors, and the inductor. When selecting these components, consider the voltage rating, capacitance value, and equivalent series resistance (ESR) for the capacitors, and the inductance value, DC resistance, and saturation current for the inductor.
To troubleshoot issues with the LMZ23608TZ/NOPB, start by checking the input voltage and current, output voltage and current, and the device's temperature. Use an oscilloscope to check for voltage ripple and noise, and a thermal camera to check for hotspots. Also, verify that the PCB layout and component selection meet the recommended guidelines.
Yes, the LMZ23608TZ/NOPB can be used in high-reliability applications. Key considerations include ensuring the device is operated within its recommended operating conditions, using a robust PCB design and layout, selecting high-reliability components, and implementing adequate thermal management and fault protection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ23608TZ/NOPB Overview

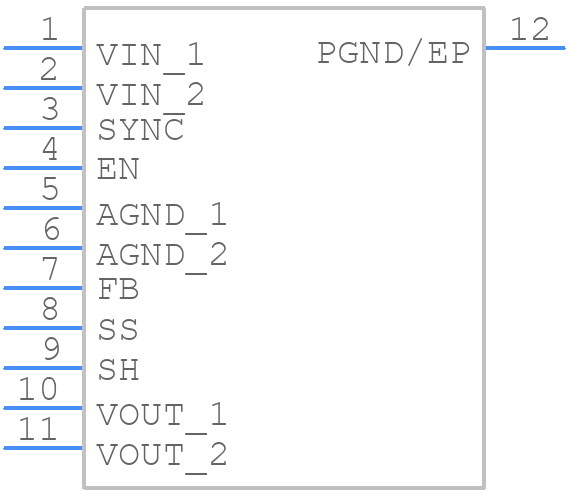

Use the download button to access the LMZ23608TZ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
