A good PCB layout for the LMZ30604RKGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range. It's also crucial to ensure that the device is operated within the recommended temperature range.
The LMZ30604RKGR can deliver up to 4A of output current. However, the maximum output current may be limited by the thermal performance of the device and the PCB. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the maximum output current.
The LMZ30604RKGR is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures. Additionally, the device's output current may need to be derated at high temperatures.
To troubleshoot issues with the LMZ30604RKGR, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check the output voltage and current to ensure they are within the expected range. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, check the PCB layout and component values to ensure they are correct.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ30604RKGR Overview

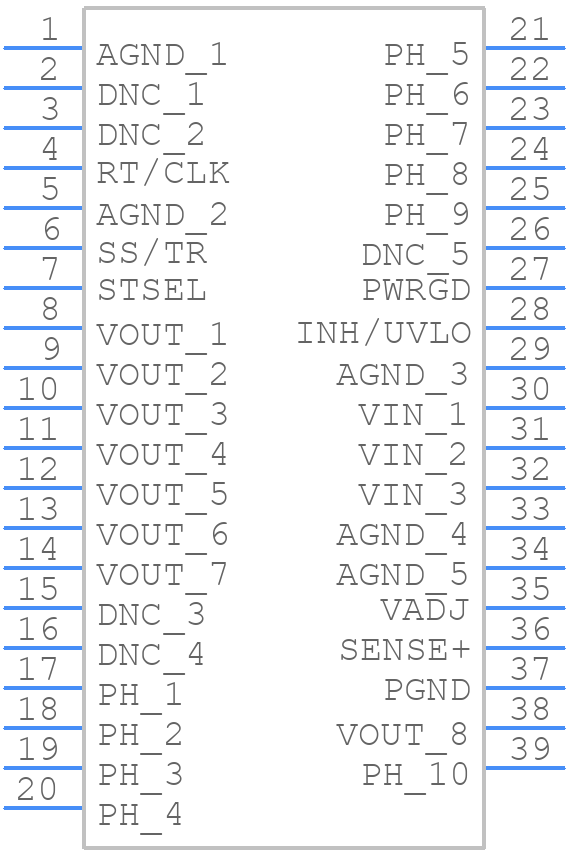

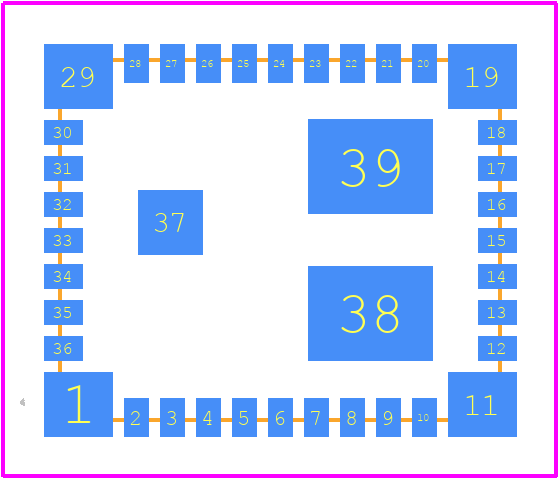

Use the download button to access the LMZ30604RKGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ30,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
