A good PCB layout for the LMZ30604RKGT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range. It's also crucial to ensure that the device is operated within the recommended temperature range.
The LMZ30604RKGT can deliver up to 4A of output current. However, the maximum output current may be limited by the thermal performance of the device and the PCB. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the maximum output current.
The LMZ30604RKGT is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the high temperatures.
To troubleshoot issues with the LMZ30604RKGT, start by verifying that the input voltage and output voltage are within the recommended ranges. Check the PCB layout for any errors or omissions, and ensure that the device is properly heatsinked. Use an oscilloscope to check for any oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ30604RKGT Overview

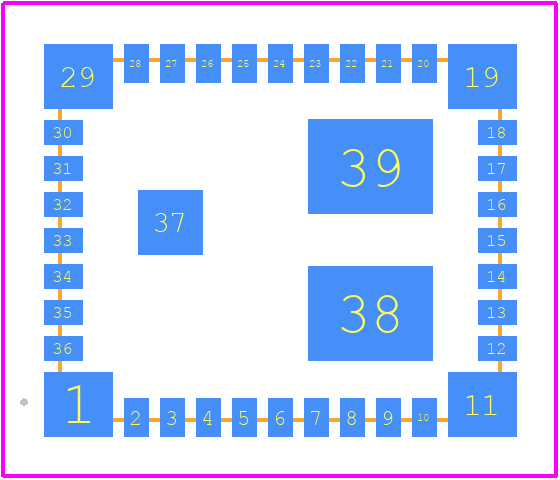

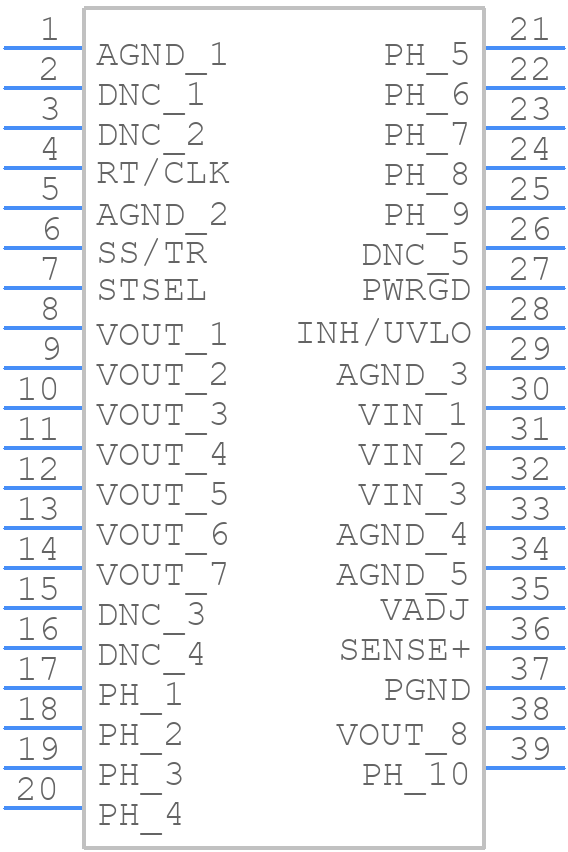

Use the download button to access the LMZ30604RKGT schematic symbol, PCB footprint, and 3D model.
