For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the thermal vias are connected to the ground plane and that the component is placed near a thermal pad or heat sink.
To ensure a stable and accurate output voltage, it is essential to follow the recommended layout and component placement guidelines. Additionally, use a high-quality output capacitor with low ESR and a suitable voltage rating. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
The recommended input capacitor type is a ceramic capacitor with an X7R or X5R dielectric. The value depends on the input voltage and output current requirements. A general guideline is to use a 10uF to 22uF capacitor with a voltage rating of 10V to 25V. However, it is recommended to consult the datasheet and application notes for specific guidance.
To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC that can detect and respond to voltage faults. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage and prevent damage to the device.
The recommended thermal management strategy involves using a heat sink or a thermal pad to dissipate heat efficiently. Ensure that the device is placed near a thermal pad or heat sink, and that the thermal interface material is of high quality. Additionally, consider using a fan or a heat pipe to enhance heat dissipation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ31503RUQR Overview

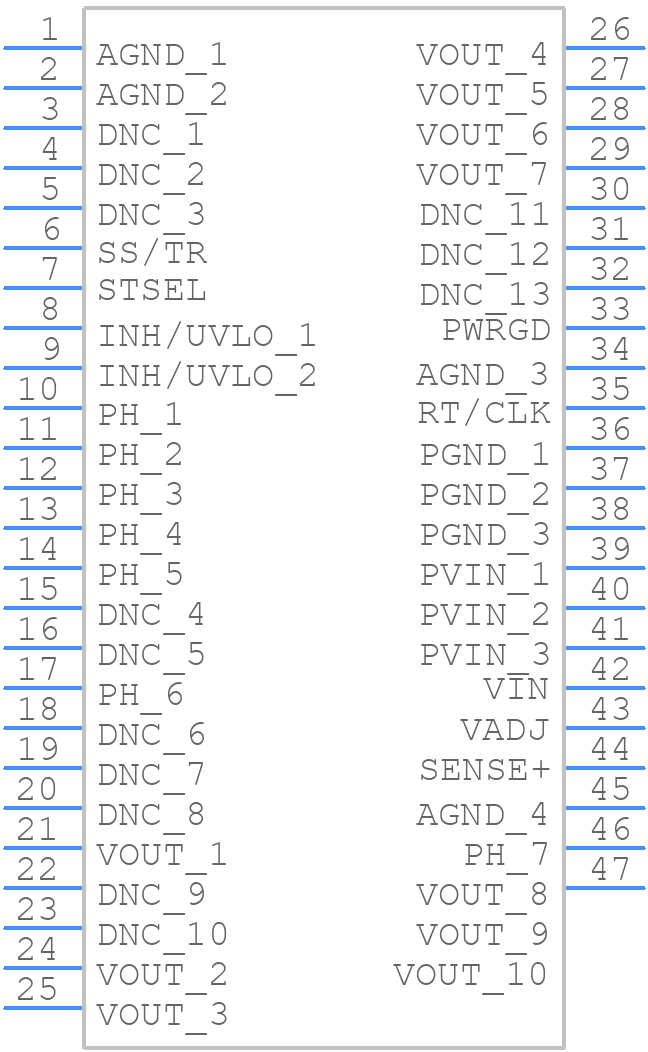

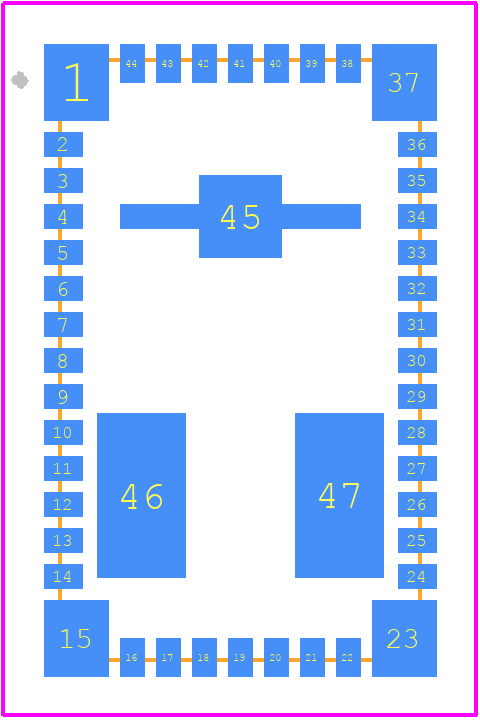

Use the download button to access the LMZ31503RUQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ31,
or try a keyword search, such as Switching Regulator or Controllers
