A good PCB layout for the LMZ34002RKGR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure a stable and accurate output voltage, make sure to decouple the input and output with suitable capacitors (e.g., 10uF ceramic capacitors). Also, use a low-ESR output capacitor (e.g., 22uF ceramic capacitor) and ensure the feedback resistors are of high precision (e.g., 1% tolerance).
A 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input capacitor. This value provides a good balance between input ripple rejection and stability.
During power-up, ensure the EN pin is pulled high after the input voltage has reached a stable level (typically > 2.5V). During power-down, pull the EN pin low before the input voltage drops below 2.5V. This ensures proper shutdown and prevents unwanted output voltage spikes.
The LMZ34002RKGR can deliver up to 2A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Ensure the device is properly heatsinked and the output current is within the recommended operating range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ34002RKGR Overview

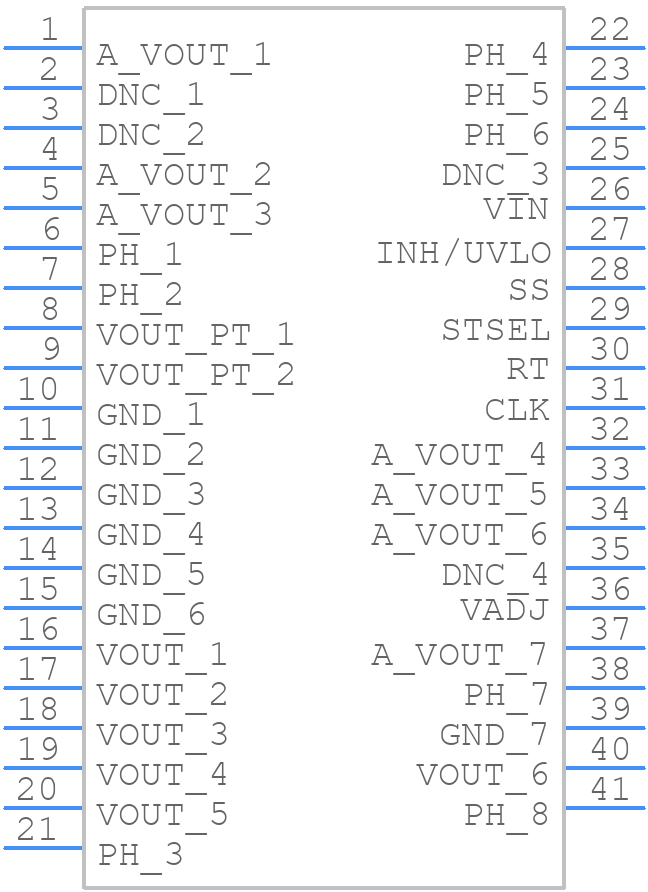

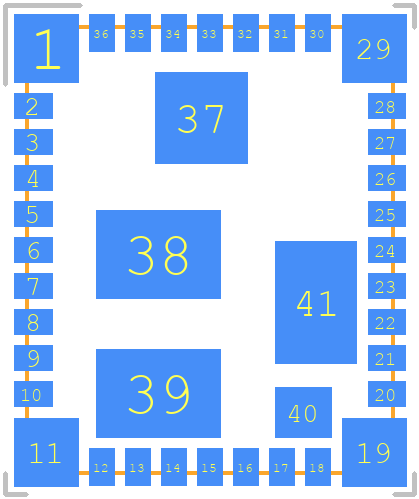

Use the download button to access the LMZ34002RKGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ34,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
