A good PCB layout for the LMZ35003RKGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range. It's also important to ensure that the device is operated within the recommended temperature range.
The maximum ambient temperature range for the LMZ35003RKGR is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum operating temperature should be derated accordingly.
Yes, the LMZ35003RKGR is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the LMZ35003RKGR, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check the PCB layout for any signs of damage or contamination, and ensure that the device is operated within its recommended temperature range. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ35003RKGR Overview

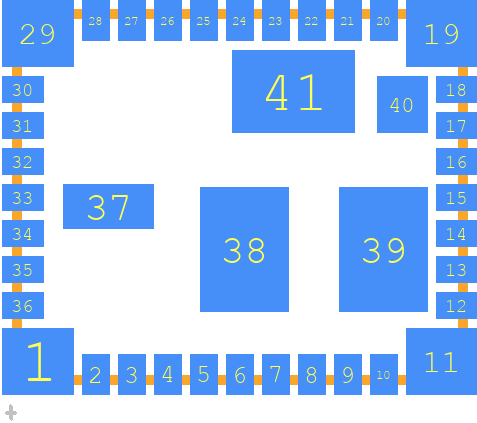

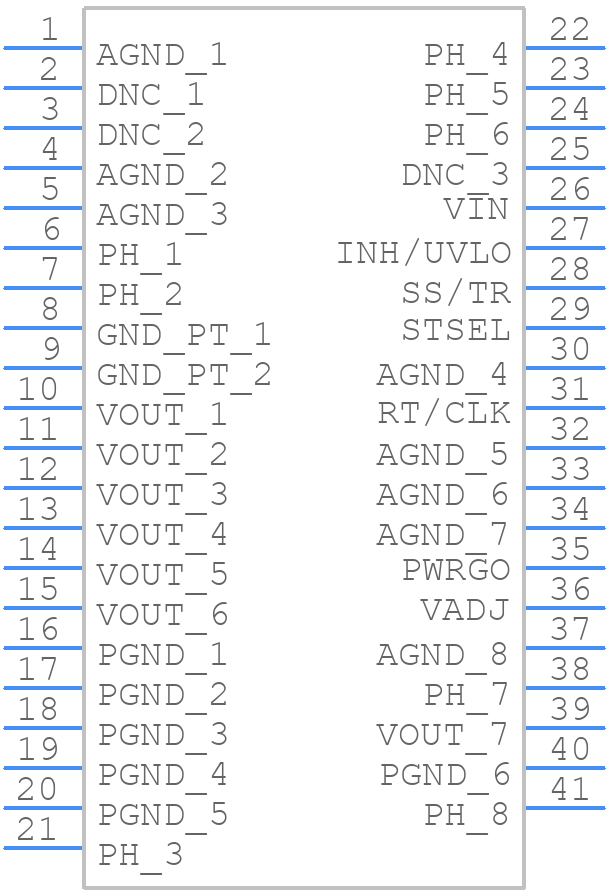

Use the download button to access the LMZ35003RKGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ35,
or try a keyword search, such as Switching Regulator or Controllers
