LMZ36002RVQT - Texas Instruments

Description: SIMPLE SWITCHER® 4.5V to 60V, 2A Step-Down Power Module in QFN Package

Download LMZ36002RVQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

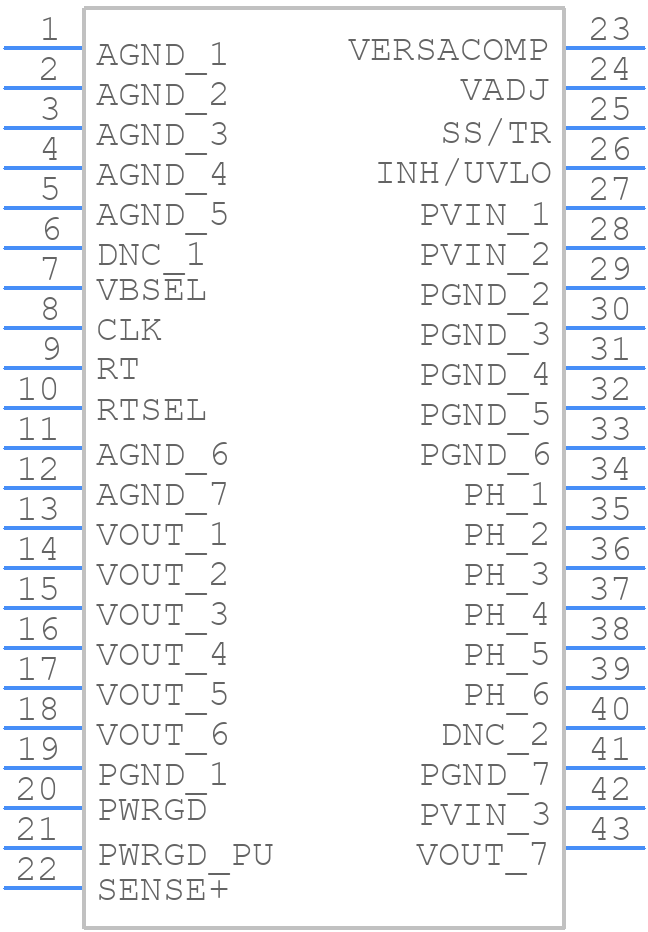

LMZ36002RVQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

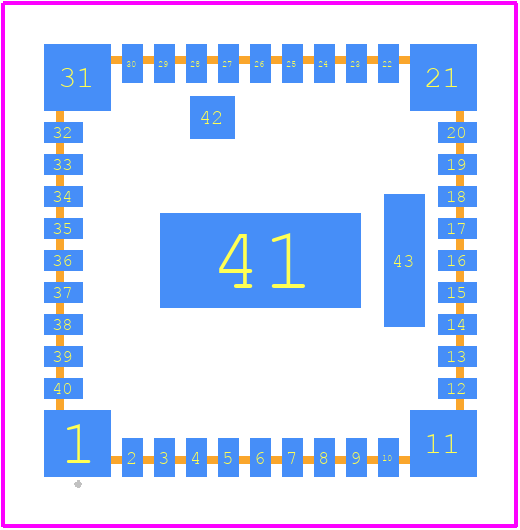

LMZ36002RVQT - Texas Instruments PCB footprint - Other - Other - RVQ (S-PB3QFN-N43)
click to zoom
3D Models
LMZ36002RVQT - Texas Instruments - 3D model - Other - RVQ (S-PB3QFN-N43)
click to zoom

LMZ36002RVQT Details

  • Manufacturer Part Number:

    LMZ36002RVQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PQCC-N43

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    7.5 V

  • Output Voltage-Min:

    2.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC43,.4SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    4.4 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

LMZ36002RVQT Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and direct to the heat sink or thermal pad.
  • To ensure a stable and accurate output voltage, it's essential to use a high-quality output capacitor with low ESR and a sufficient capacitance value. Additionally, the output voltage can be adjusted using the feedback resistors, and the output voltage accuracy can be improved by using a precision voltage reference.
  • The maximum input voltage that can be applied to the LMZ36002RVQT is 42V. Exceeding this voltage may cause damage to the device or affect its performance.
  • The device has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's still recommended to add external protection components, such as fuses or PTC thermistors, to prevent damage from excessive current or temperature.
  • The LMZ36002RVQT is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
