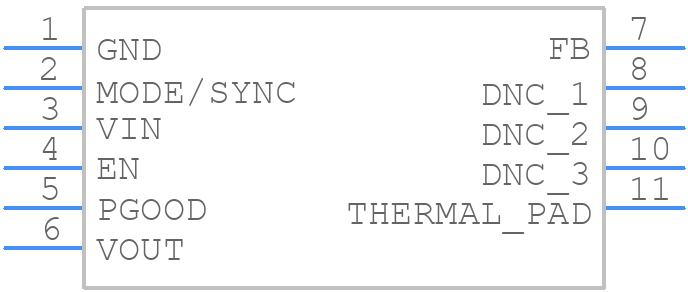

LMZM23600V5SILR - Texas Instruments

LMZM23600V5SILR Details

• Manufacturer Part Number:

  LMZM23600V5SILR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8504.40.85.00

• Date Of Intro:

  2018-03-30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  PFM TECHNIQUE ALSO USED

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  4 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XXMA-N10

• JESD-609 Code:

  e4

• Length:

  3.8 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.5 A

• Output Voltage-Max:

  15 V

• Output Voltage-Min:

  1.2 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.578 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  1090 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Gold (Ni/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.6 mm

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
