LNBH26LSPQR - STMicroelectronics

Description: STMicroelectronics LNBH26LSPQR Dual LNBS Supply and Control IC 500 mA, 440 kHz, Adjustable, 19.82 V, 24-Pin QFN

Download LNBH26LSPQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

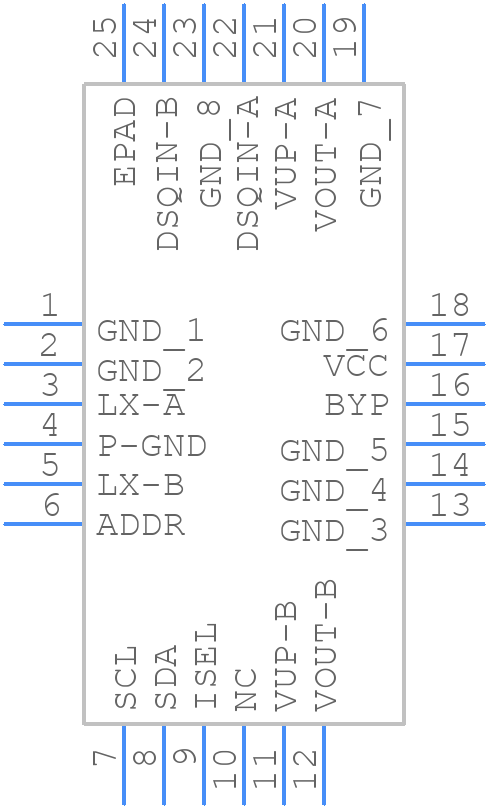

LNBH26LSPQR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LNBH26LSPQR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 EP 4x4 mm
click to zoom
3D Models
LNBH26LSPQR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN24 EP 4x4 mm
click to zoom

LNBH26LSPQR Details

  • Manufacturer Part Number:

    LNBH26LSPQR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, QFN-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LNBH26LSPQR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LNBH26LSPQR is 3.3V ± 10%.
  • To ensure proper biasing, connect the VCC pin to a 3.3V power supply, and the VEE pin to ground. Also, make sure to decouple the power supply with a 10uF capacitor.
  • The maximum input power that the LNBH26LSPQR can handle is +10 dBm.
  • To optimize the LNBH26LSPQR for low noise figure and high gain, use a high-impedance input matching network and a low-impedance output matching network. Also, ensure that the device is properly biased and the operating voltage is within the recommended range.
  • The typical current consumption of the LNBH26LSPQR is 45 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBH26LSPQR Overview

Use the download button to access the LNBH26LSPQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBH2, or try a keyword search, such as Other Telecom ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
