LNBH26SPQR - STMicroelectronics

Description: Dual LNB supply and control IC with step-up and I²C interface

Download LNBH26SPQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

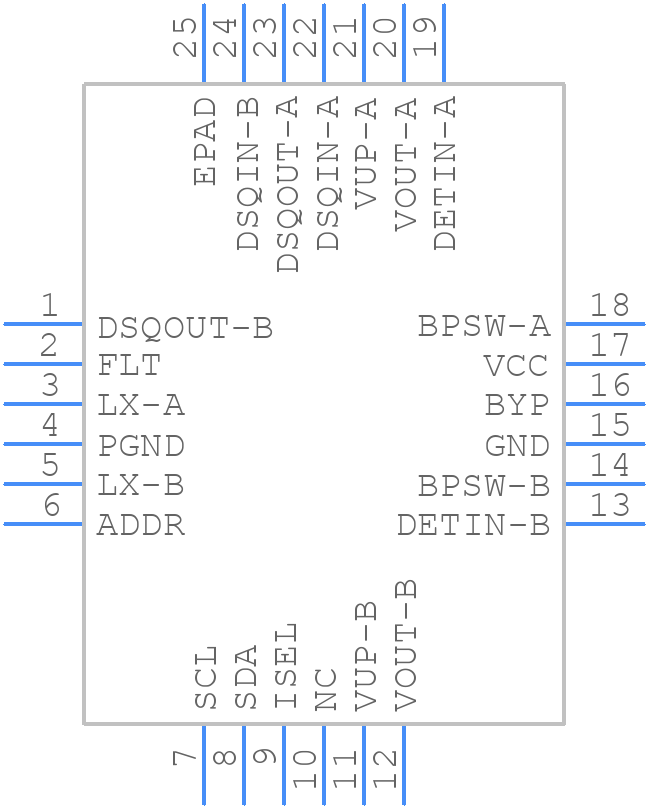

LNBH26SPQR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LNBH26SPQR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 (4x4 mm)
click to zoom
3D Models
LNBH26SPQR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN24 (4x4 mm)
click to zoom

LNBH26SPQR Details

  • Manufacturer Part Number:

    LNBH26SPQR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LNBH26SPQR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the LNBH26SPQR close to the power supply and use short, wide traces for the output lines.
  • Connect the VCC pin to a stable 3.3V or 5V power supply, and ensure the EN pin is tied to a logic high (VCC) or a pull-up resistor to enable the device.
  • The LNBH26SPQR can handle up to +10 dBm of input power. Exceeding this may cause damage to the device.
  • Use a high-quality, low-noise power supply, and ensure the device is operated within the recommended temperature range (–40°C to +85°C). Additionally, use a low-noise, high-impedance input source.
  • Yes, but ensure the switching frequency is above 100 kHz to avoid interference with the LNBH26SPQR's internal oscillator. Also, use a low-ESR output capacitor to minimize voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBH26SPQR Overview

Use the download button to access the LNBH26SPQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBH2, or try a keyword search, such as Other Telecom ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
