The maximum output power of LNK3204P depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 4W for this device.
To ensure safe operation, the LNK3204P should be operated within a temperature range of -40°C to 125°C. Proper thermal design, including heat sinking and airflow, is crucial to maintain a safe operating temperature.
To minimize EMI, Power Integrations recommends a compact PCB layout with a solid ground plane, short traces, and a shielded transformer. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, keep the input and output stages separate to reduce noise coupling.
When selecting a transformer for LNK3204P, consider the input voltage, output voltage, and power rating. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses.
When designing an EMI filter for LNK3204P, consider the frequency range, impedance, and attenuation requirements. A common-mode choke, X-capacitors, and Y-capacitors are essential components. Ensure the filter is designed to meet the relevant EMI standards, such as CISPR 22 and FCC Part 15.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LNK3204P Overview

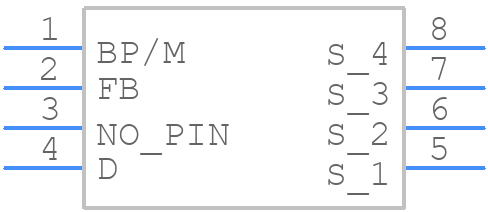

Use the download button to access the LNK3204P schematic symbol, PCB footprint, and 3D model.
