LNK3296G-TL - Power Integrations

Description: AC/DC Converters 900V 225 mA (MDCM) 360 mA (CCM)

Download LNK3296G-TL Model

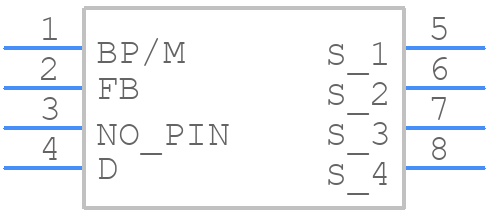

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LNK3296G-TL - Power Integrations PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SO-8C
click to zoom
3D Models
LNK3296G-TL - Power Integrations  - 3D model - SOT23 (8-Pin) - SO-8C
click to zoom

LNK3296G-TL Details

  • Manufacturer Part Number:

    LNK3296G-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-8/7 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    6

  • Additional Feature:

    THERMAL SHUTDOWN:150C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G7

  • Length:

    9.44 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP7/8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    3.98 mm

  • Supply Voltage-Max (Vsup):

    265 V

  • Supply Voltage-Min (Vsup):

    85 V

  • Supply Voltage-Nom (Vsup):

    230 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    6.35 mm

LNK3296G-TL Frequently Asked Questions (FAQs)

  • The maximum output power of LNK3296G-TL depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 65W for this device.
  • To ensure reliable start-up, make sure the input voltage is within the recommended range, and the output voltage is properly set. Also, ensure that the input capacitor is properly sized and placed close to the device. Additionally, a soft-start circuit can be implemented to reduce inrush current during start-up.
  • For optimal performance, place the LNK3296G-TL close to the input capacitors and ensure a low-impedance path for the high-frequency currents. Keep the layout symmetrical and avoid routing high-frequency signals near sensitive analog signals. Follow the recommended layout guidelines in the datasheet and application notes.
  • To optimize the design for EMI and EMC compliance, use a shielded transformer, keep the layout compact, and use a common-mode choke. Ensure proper grounding and shielding of the PCB, and use EMI filters or ferrite beads on the input and output lines. Follow the guidelines in the datasheet and application notes for EMI and EMC compliance.
  • The LNK3296G-TL has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a thermal pad or heat sink, and keep the device away from other heat sources. Monitor the device temperature and adjust the design accordingly to prevent overheating.
