LNK6408K-TL - Power Integrations

Description: Converter Offline Flyback Topology Up to 85kHz 12-ESOP

Download LNK6408K-TL Model

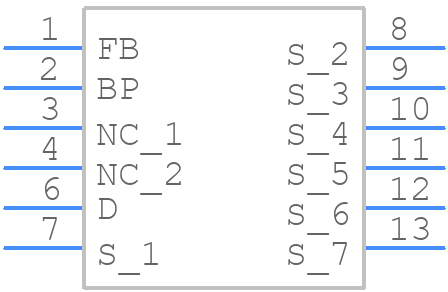

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LNK6408K-TL - Power Integrations PCB footprint - Other - Other - eSOP-12B (K Package)_2
click to zoom
3D Models
LNK6408K-TL - Power Integrations  - 3D model - Other - eSOP-12B (K Package)_2
click to zoom

LNK6408K-TL Details

  • Manufacturer Part Number:

    LNK6408K-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    6

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Moisture Sensitivity Level:

    3

LNK6408K-TL Frequently Asked Questions (FAQs)

  • Power Integrations provides a recommended PCB layout in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal performance, minimize EMI, and optimize electrical performance.
  • Power Integrations provides a transformer selection guide in their application notes. Factors to consider include the transformer's turns ratio, inductance, and core material. The selection guide helps engineers choose the right transformer for their specific design requirements.
  • The maximum allowed voltage on the BYPASS pin is typically limited to the voltage rating of the internal zener diode, which is around 6.2V. Exceeding this voltage can damage the IC.
  • To ensure reliable start-up and operation with a wide input voltage range, it's essential to follow the recommended start-up circuitry and voltage sensing circuitry in the datasheet. Additionally, the input voltage range should be within the specified limits, and the design should be able to handle the maximum input voltage.
  • Thermal design considerations include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The datasheet provides thermal resistance values and recommended operating temperatures to help engineers design a thermally efficient system.
