LNK6666V - Power Integrations

Description: Converter Offline Flyback Topology 120kHz ~ 136kHz eDIP-12

Download LNK6666V Model

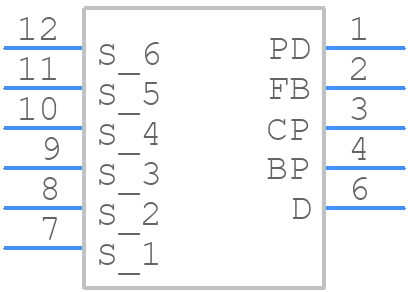

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LNK6666V - Power Integrations PCB footprint - Other - Other - LNK6666V-3
click to zoom
3D Models
LNK6666V - Power Integrations  - 3D model - Other - LNK6666V-3
click to zoom

LNK6666V Details

  • Manufacturer Part Number:

    LNK6666V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

LNK6666V Frequently Asked Questions (FAQs)

  • Power Integrations provides a recommended PCB layout guide in their application notes (e.g., AN-58) and evaluation board documentation. Key considerations include keeping the high-voltage node (HV) away from the low-voltage node (LV), using a solid ground plane, and minimizing loop areas to reduce EMI.
  • To ensure reliable start-up and operation, it's essential to follow the recommended start-up circuitry and voltage sequencing guidelines in the datasheet. Additionally, consider using a voltage supervisor or reset IC to monitor the input voltage and ensure the LNK6666V is properly biased before enabling the output.
  • The LNK6666V has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB thermal design guidelines. The datasheet provides thermal resistance and junction temperature ratings to help with thermal design.
  • The output filter design depends on the specific application requirements, such as output voltage, current, and ripple. Power Integrations provides a filter design tool and application notes (e.g., AN-55) to help optimize the output filter. Consider using a combination of capacitors and inductors to achieve the desired output characteristics.
  • To minimize EMI, follow the recommended PCB layout and design guidelines, use a shielded transformer, and consider adding EMI filters or common-mode chokes. Power Integrations also provides EMI mitigation guidelines in their application notes (e.g., AN-61).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNK6666V Overview

Use the download button to access the LNK6666V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK66, or try a keyword search, such as Power Management Circuits
