The maximum operating temperature range for the LNK6769K-TL is -40°C to 125°C.
To ensure proper biasing, connect a 1-10 nF capacitor between the BYPASS pin and the VIN pin, and a 1-10 μF capacitor between the VIN pin and the GND pin.
To minimize EMI, place the LNK6769K-TL close to the input capacitors, keep the high-frequency loops small, and use a solid ground plane. Also, ensure that the input and output traces are separated and not routed near each other.
Yes, the LNK6769K-TL is suitable for use in flyback converter topologies, but it's essential to follow the recommended design guidelines and ensure proper transformer design and component selection.
The output voltage of the LNK6769K-TL can be calculated using the formula: VOUT = (VIN x N x EFF) / (1 + (RFB / RIN)), where N is the transformer turns ratio, EFF is the efficiency, RFB is the feedback resistor, and RIN is the input resistor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LNK6769K-TL Overview

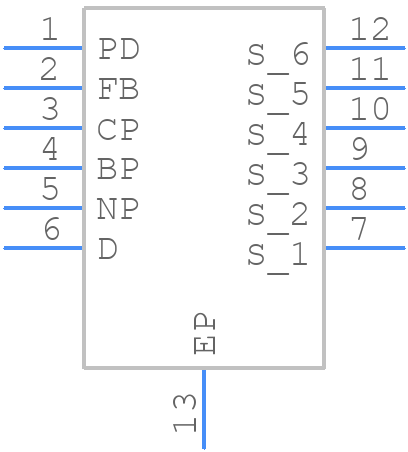

Use the download button to access the LNK6769K-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK67,
or try a keyword search, such as Power Management Circuits
