LNK6773K-TL - Power Integrations

Description: AC/DC Converters 21 W (85-265 VAC) 35 W (230 VAC) IC..

Download LNK6773K-TL Model

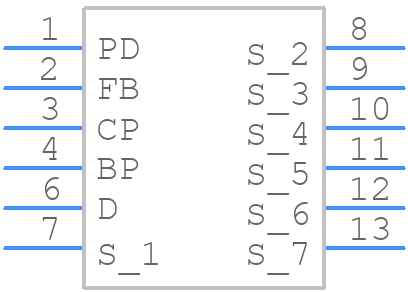

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LNK6773K-TL - Power Integrations PCB footprint - Other - Other - LNK6773K-TL-1
click to zoom
3D Models
LNK6773K-TL - Power Integrations  - 3D model - Other - LNK6773K-TL-1
click to zoom

LNK6773K-TL Details

  • Manufacturer Part Number:

    LNK6773K-TL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

LNK6773K-TL Frequently Asked Questions (FAQs)

  • A good PCB layout for the LNK6773K-TL should have a solid ground plane, keep the input and output stages separate, and use a star-configuration for the transformer connections. Refer to Power Integrations' application notes for more details.
  • To ensure reliable start-up and shutdown, make sure to follow the recommended soft-start and shutdown procedures outlined in the datasheet. Additionally, ensure that the input voltage is stable and within the recommended range.
  • The LNK6773K-TL has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's temperature and adjust the design accordingly.
  • Optimize the transformer design by selecting the correct core material, turns ratio, and wire size. Refer to Power Integrations' application notes and transformer design guides for more information. Consider using a transformer with a low leakage inductance and a high magnetizing inductance.
  • To minimize EMI, ensure that the PCB layout is optimized for low radiation, use a shielded transformer, and add EMI filters as needed. Follow the guidelines outlined in the datasheet and application notes for EMI reduction techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNK6773K-TL Overview

Use the download button to access the LNK6773K-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK67, or try a keyword search, such as Power Management Circuits
