The maximum output power of LNK6776V depends on the input voltage, output voltage, and other design parameters. However, according to the datasheet, the device can deliver up to 65W of output power.
To ensure the stability of the output voltage, it's essential to follow the recommended PCB layout guidelines, use a suitable output capacitor, and adjust the feedback resistors (RFBT and RFB) to achieve a stable output voltage.
The BYPASS pin is used to connect an external capacitor to the internal voltage regulator, which helps to improve the power supply rejection ratio (PSRR) and reduce the output voltage ripple.
When selecting a transformer for use with LNK6776V, consider the input voltage, output voltage, and power rating. The transformer should be designed to handle the maximum output power and have a suitable turns ratio to achieve the desired output voltage.
The recommended operating temperature range for LNK6776V is -40°C to 125°C. However, the device can operate up to 150°C with derating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LNK6776V Overview

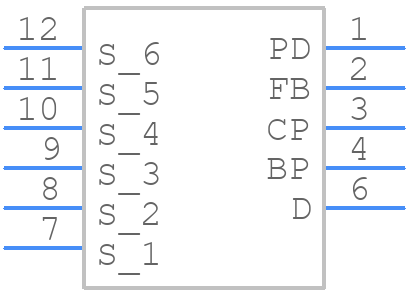

Use the download button to access the LNK6776V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK67,
or try a keyword search, such as Power Management Circuits
