Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accurate voltage measurement, it's crucial to follow proper PCB layout and routing guidelines, use a high-precision voltage reference, and calibrate the device according to the datasheet. Additionally, consider using a low-noise, low-impedance power supply and minimizing electromagnetic interference (EMI) in the system.
The LOG114AIRGVRG4 can handle input voltages up to 80V, but it's essential to ensure that the input voltage does not exceed the maximum rating to prevent damage to the device. It's recommended to use input voltage limiting resistors or voltage regulators to protect the device from overvoltage conditions.
The LOG114AIRGVRG4 provides a digital output that can be easily interfaced with a microcontroller or FPGA. Use a digital input pin on the microcontroller or FPGA to read the output data from the LOG114AIRGVRG4. Ensure that the digital output voltage levels are compatible with the microcontroller or FPGA's input voltage levels.
The typical power consumption of the LOG114AIRGVRG4 is around 2.5mA, but it can vary depending on the input voltage, output frequency, and operating conditions. It's essential to consider power consumption when designing the system's power budget and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LOG114AIRGVRG4 Overview

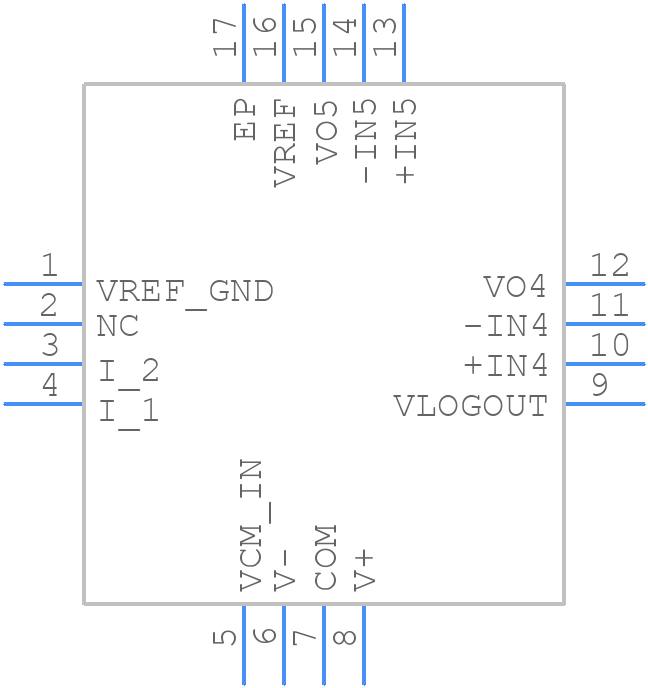

Use the download button to access the LOG114AIRGVRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LOG11,
or try a keyword search, such as Analog Computational Functions
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
